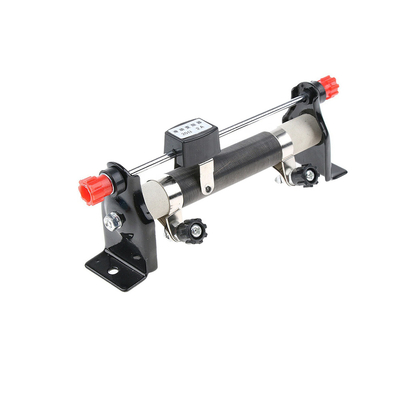

High Stability Wirewound Rheostat Sliding Type 10-200 Ohms 1-8A

Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number SR
Minimum Order Quantity 100 PCS
Price US$10.00-US$20.00
Packaging Details Bulk in Carton
Delivery Time 2 Weeks
Payment Terms T/T, Western Union
Supply Ability 100,000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Current 1-8A Resistance 10-200OHMS
High Light

High Stability Wirewound Rheostat

,

Wirewound Rheostat 200 Ohms

,

Rheostat Sliding Type 8A

Leave a Message
Product Description

Sliding Rheostat, 10-200 Ohms, 1-8A



Key Features of Sliding Rheostats:

1.Long term high stability
2.non-inductive or inductive type options
3.high operating voltage(up to 1.2KV) and high power ratings(up to 15KW)
4.terminals suitable for soldering or bolt connection
5.Available covered in stainless steel AISI 304. Case made in zinc plated steel or in stainless steel or in aluminum plated steel if requested.


Characteristics of Sliding Rheostats:

1.Rated current: 2-8A
2.Resistance values: from 12Ω to as high as 190Ω
3.Temperature Coefficients:25,50 and 100ppm/℃ or as required
4.Operating Temperature:-55℃ to +225℃
5.Insulation Resistance: >1000MΩ (500V 25℃ 75% relative humidity)
6.Dielectric strength: >3.0KV 50Hz 1min(25℃ 75% relative humidity)
7.IP protection: IP00, IP20 or as required
8.Element material: OCR25AL5/CrAlFe/CrNi/CuNi
9.Lead material: Brass Caps(lug terminations available)
10.Encapsulation: Silicone conformal coating


Application of Sliding Rheostats:

1.simulation load testing, capacitor charging & discharging,
2.automation control , inverter's energy loss brake,
3.crane systems, various steel mill applications and transit applications, neutral grounding.
4.filter,electrical machinery general use, available through distribution
