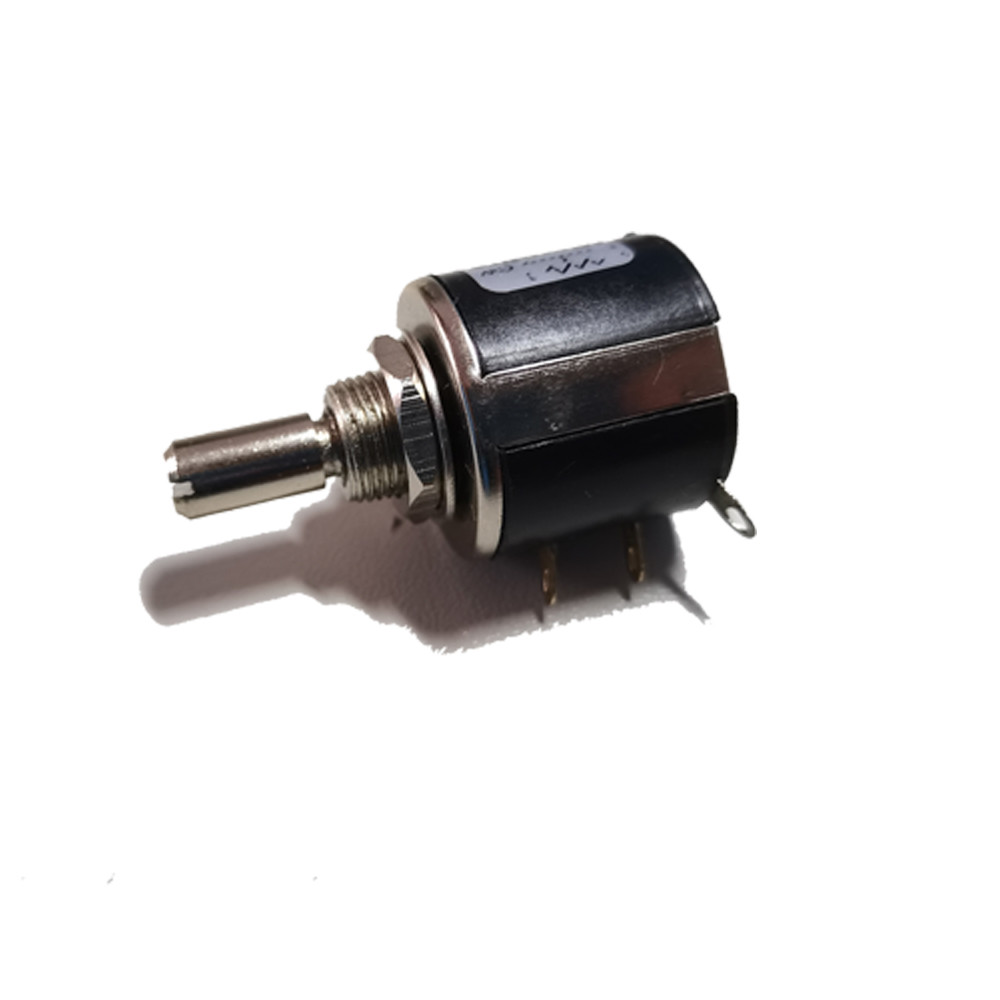

2W Wirewound Potentiometer 10 Turns Multi Turn MOD 534 potentiometer

Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number MOD534
Minimum Order Quantity 500PCS
Price US$1.5-US$2.5
Packaging Details Bulk in Box
Delivery Time 3 Weeks
Payment Terms T/T, Western Union
Supply Ability 100,000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rotation 3600° Number Of Turns 10
Rated Power 2W Resistance 100Ω-100KΩ
Shaft Size 0.236" (6.00mm)
High Light

2W Wirewound Potentiom

,

Mod 534 Potentiometer

,

multi turn wirewound potentiometer

Leave a Message
Product Description

MOD534 Wirewound Potentiometer

Model Number
MOD534
Type
Wirewound Potentiometer
Place of Origin
China
Brand Name
JDC
Technology
Wirewound
Resistance
100Ω-100KΩ
Resistance Tolerance
±2%, ±5%
Rated Power
2W
Operating Temperature
-55℃~+125℃
Diameter
22
Length
39
Rotation
3600°
Shaft Size
0.236" (6.00mm)
Number of Turns
10
TCR
±100ppm/℃
Rated Voltage
160V
Mechanical Endurance
10000
