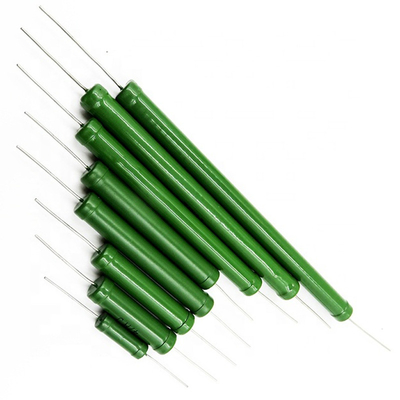

Metal Glaze Film High Voltage High Power Resistor Max Voltage 55KV
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | RI80 |
| Minimum Order Quantity | 100PCS |
| Price | US$1.5-US$6.5 |
| Packaging Details | Bulk in bag |
| Delivery Time | 3 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 5W-30W | Resistance Range | 100Ω-100GΩ |
|---|---|---|---|
| Tolerance | 5%(Standard), 2%, 1% | ||
| High Light | Metal High Voltage High Power Resistor,55KV High Voltage High Power Resistor,Glaze Film high voltage power resistors |
||
Product Description
High Voltage Metal Glaze Film Resistors, Max Voltage to 55KV

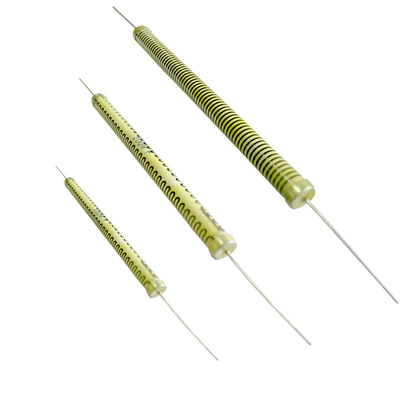

RI80 high voltage Metal Glaze Film Resistors were specifically designed for general purpose high voltage systems in industrial. RI80 series uses JDC proprietary thick film Metal Glaze resistive element and Serpentine Pattern Design which provides ideal cost efficient, stability, precision and high voltage characteristics for a wide range of measurement, voltage divider circuits, and control functions in high voltage power electronics applications.
By utilizing specific ceramic core materials with optimum processing, Token are able to control, very tightly in manufacturing, the important ultra-stable performance parameters in operating temperatures from -55°C to +70°C.
Features:
- Rated Wattage from 5W to 30W. Max Working Voltage up to 55K
- Temperature Coefficient: 200 ppm/°C to 400 ppm/°C.
- Resistance Tolerance G( ±2%), J(±5%), K(±10%).
Dimensions:
