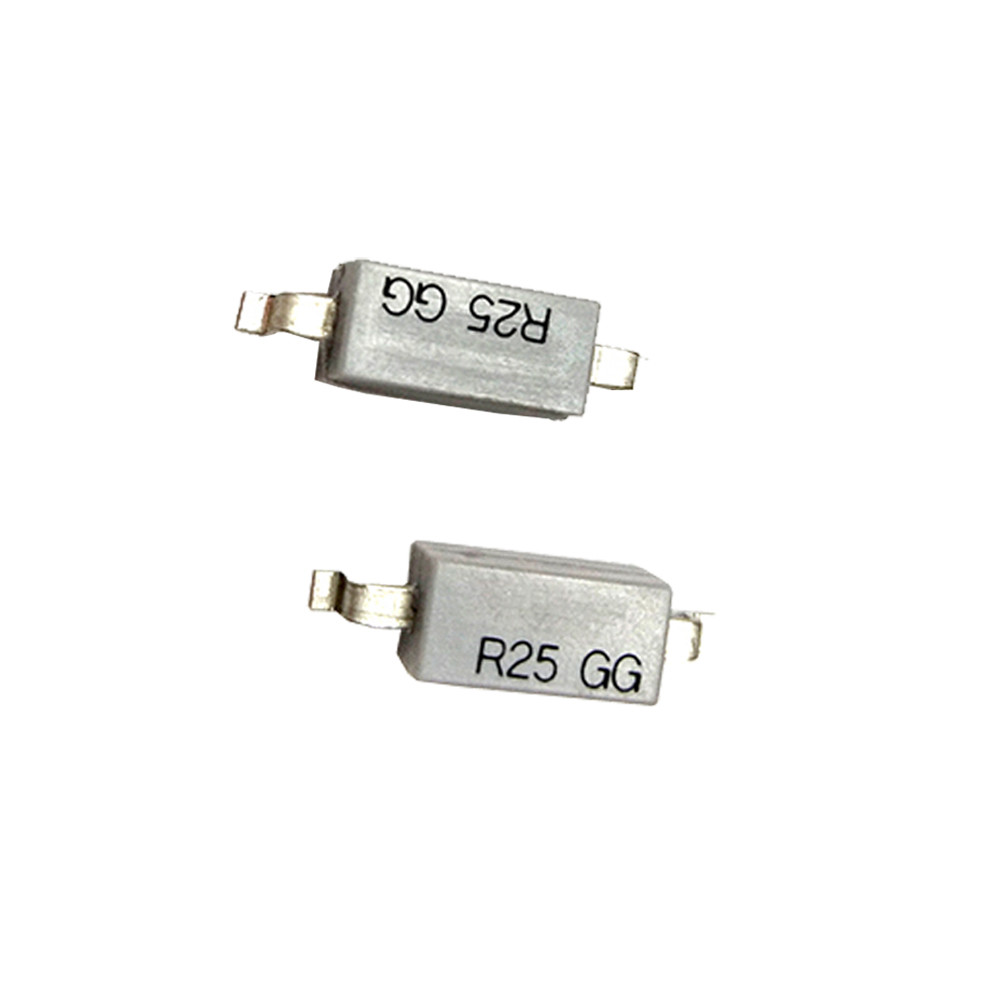

20ppm-100ppm Power SMD Wirewound Resistors 2W 3W 5W ROHS approval
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | SWR |
| Minimum Order Quantity | 5,000PCS |
| Price | US$0.05-US$0.12 |
| Packaging Details | Tape in Reel |
| Delivery Time | 2 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1,000,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 2W, 3W, 5W | Resistance Range | 0.1Ω-680Ω |
|---|---|---|---|
| Tolerance | ±1%, ±2% | TCR | 20ppm-100ppm |
| High Light | 100ppm SMD Wirewound Resistor,SMD Wirewound Resistor 2W,wire wound power resistor 5W |
||
Product Description
SMD Wirewound Resistor 2W, 3W, 5W,
Power wirewound Chip Resistor includes 2W, 3W and 5W three kinds of power. Resistance range from 0.1Ω to 680Ω and accuracy tolerance options are 1%, and 5% with low TCR and high overload capacity, suitable for surge and pulse applications.
Features:
- Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
- Low thickness with non-inductive metal plate components. Reduce assembly costs.
- All-welded wire wound structure, high-quality resistance wire, with excellent stability and surge capacity.
- Automatic surface mount special design. Excellent mechanical strength and electrical stability.
Dimensions:
| Rated Wattage | A ±0.3 | B ±0.3 | C ±0.3 | D ±0.3 | E Max. | F ±0.3 | Resistance Range (Ω) |
| 2W | 4.0 | 6.7 | 1.4 | 3.55 | 7.9 | 1.5 | 0.1 ~ 200 |
| 3W | 5.5 | 10.5 | 1.7 | 5.0 | 12 | 2.3 | 0.1 ~ 300 |
| 5W | 7.3 | 13.5 | 1.7 | 6.8 | 17 | 2.5 | 0.1 ~ 680 |
