Open Air Metal Alloy Low Value Resistors ROHS And Reach Compliant

  • Open Air Metal Alloy Low Value Resistors ROHS And Reach Compliant
  • Open Air Metal Alloy Low Value Resistors ROHS And Reach Compliant
  • Open Air Metal Alloy Low Value Resistors ROHS And Reach Compliant
Place of Origin CHINA
Brand Name JDC
Certification ROHS and Reach
Model Number FLC
Minimum Order Quantity 5,000PCS
Price US$0.05-US$0.25
Packaging Details Bulk in Carton
Delivery Time 7-10 working days
Payment Terms T/T, L/C, Western Union, Paypal
Supply Ability 500Kpcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 1W, 2W, 3W, 5W Resistance OR002-0R100
Tolerance ±1%, ±2%, ±5% TCR 40ppm-100ppm
High Light

Metal Alloy low value resistors

,

ROHS low value resistors

,

Reach low tolerance resistors
Leave a Message
Product Description

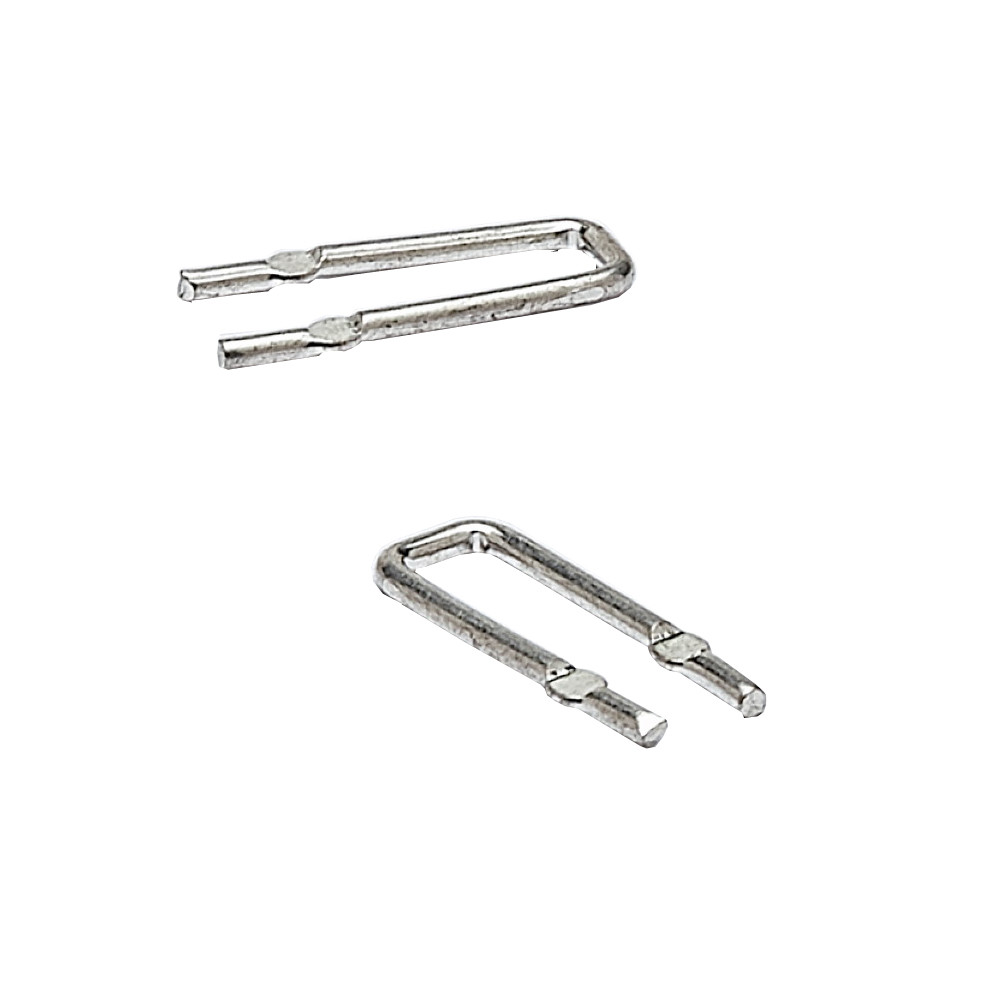

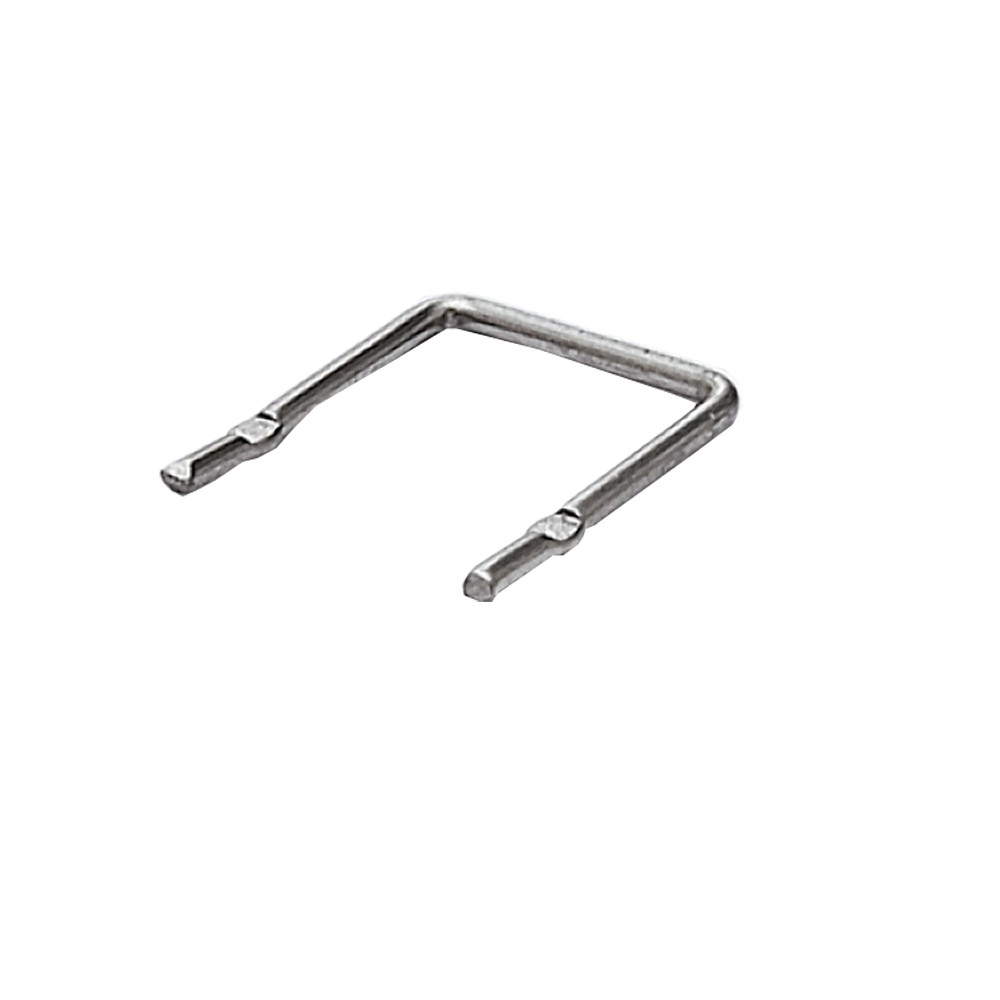

Open Air Metal Alloy Low Value Resistors, Low inductance, Radial leads, ROHS and Reach compliant

Developed for current sensing and shunt applications, FLC of bare element resistors have a precision alloys (Ni-Cu) element welded construction. Built-in stand-offs and standard spacings make for easy mounting.

The bare metal element design allows for maximum cooling via airflow, forcing less heat into the PCB. The flameproof construction offers values down to 2mΩ with low inductance. Customer can specify resistance range designed to satisfy challenging and specific technical requirements.

Features :
  • Radial leads, Low inductance. High stability open-air style.
  • Precision alloys resistive element. Pb-free and RoHS compliant.
  • Standard tolerance ±3%, ±5%, ±10%. low resistance value 2mΩ ~ 50mΩ.
Applications :
  • Inverter and Switching Power Supplies, Power Tool Motor controls.
  • Current Detective, CPU Drive Control, Automotive, Feedback System.
  • Power Supply Shunt, Residual Battery Power Detection, Current Sensing.

Dimensions:



RM (mm) H Max. (mm) B Max. (mm) Ø (mm) L1 (mm)
5 ~ 50 20 1 5 ~ 29 3±0.5
