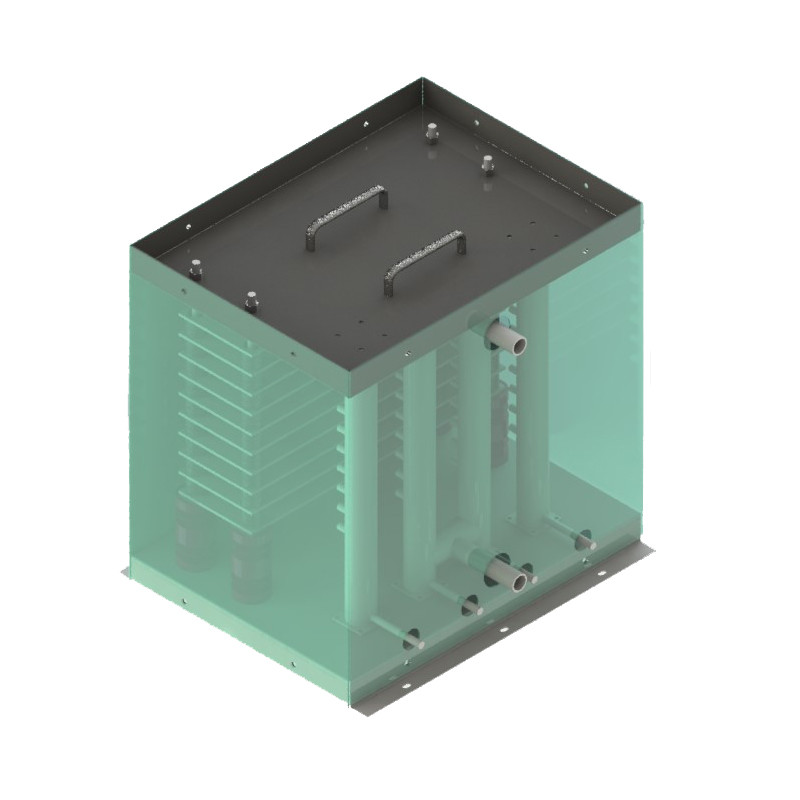

Water Cooled Load Bank Resistor Cabinet 15KW-60KW Small Size
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Model Number | SSL |
| Minimum Order Quantity | 1 |
| Price | US$1,000.00-US$10,000.00 |
| Packaging Details | Wooden case |
| Delivery Time | 3 Weeks |
| Supply Ability | 100 Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 15KW, 30KW, 45KW, 60KW | Impact Energy | 75KJ-300KJ |
|---|---|---|---|
| Withstanding Voltage | 0-10KV | Resistance Value | 0-100 Ohms |
| Cooling Water Outlet Temperature | ≤65 ℃ | Application | Military Equipment |
| High Light | Water Cooled Resistor Cabinet,15KW Resistor Cabinet,60KW Resistor Cabinet |
||
You can tick the products you need and communicate with us in the message board.
| Type | Rated Power(KW) | Impact Energy(kJ) | Resistance Range(Ω) | Tolerance | ΔT(℃) | Dimension | Withstanding Voltage | |
|---|---|---|---|---|---|---|---|---|
| SSL-15kW | 15 | 75 | 0-100 | ±5% | ≤65 | 606×515×390 | 0-10kV | |
| SSL-30kW | 30 | 150 | 0-100 | ±5% | ≤65 | 606×515×470 | 0-10kV | |
| SSL-45kW | 45 | 180 | 0-100 | ±5% | ≤65 | 606×515×530 | 0-10kV | |
| SSL-60kW | 60 | 300 | 0-100 | ±5% | ≤65 | 606×515×600 | 0-10kV |
Product Description
Water Cooled Load Bank
Features:
- Small volume and high power
- Small change rate of resistance value in hot state: the resistance piece is made of nichrome material with low temperature coefficient, and the change rate of resistance value in hot state can not be higher than 10%
- Good heat dissipation: the resistance matrix is protected by aluminum shell and dissipated by water cooling plate;
- The LB-RM water-cooled module combination of our company is adopted. The shell can match the high-voltage, and the GP03 material is used for insulation, which has extremely strong corrosion resistance and is portable and reliable.
Product application:
The product can be used in military equipment, high voltage converter, Shipbuilding Heavy Industry and other fields. It has the characteristics of small size, high insulation, shock resistance and power resistance.
Specification:
- Rated Power: 0-70kW
- Resitance:0-20Ω
- Cooling method: Water cooled heat dissipation
- Stress levels: 8kV/60s
- Dimension: 606*515*600mm
- Connection method: Conductor terminal
- Appearance of the color: Customized
