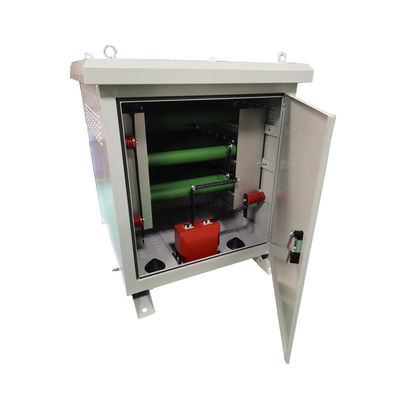

IP21-IP54 Neutral Earthing Resistor NER 110KV 100A 200A 300A 400A 10S Faulty Time
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Model Number | NGR/NER |
| Minimum Order Quantity | 1 |
| Price | US$1,000.00-US$10,000.00 |
| Packaging Details | Wooden case |
| Delivery Time | 3 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 1KV-110KV | Faulty Current | 10A-5000A |
|---|---|---|---|
| IP Grade | IP21-IP54 | Current Transformer | Customize |
| Resistor Elements | Stainless Steel | Ambient Temperature | Up To 55℃ |
| High Light | IP21 Neutral Earthing Resistor,IP54 Neutral Earthing Resistor,Stainless Steel Neutral Grounding Resistors |
||
Product Description
NER Neutral Earthing Resistors
Neutral Earthing Resistor, NER, Up To 110KV, 100A/200A/300A/400A, 10 Seconds Faulty Time, IP21-IP54
General Features

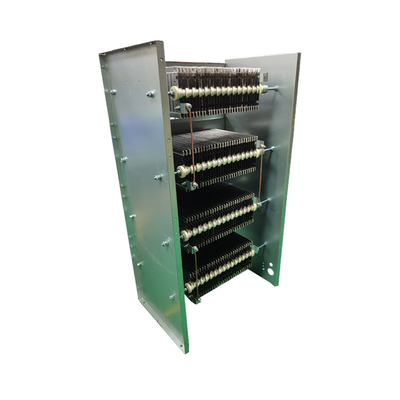

1. Stainless-steel resistor elements
2. Bolted resistor element connections instead of welded connections providing assemble of spare parts on site immediately
3. High thermal capacity to absorb high currents
4. High altitude ratings
5. Rugged shock-resistant construction
6. Solid top cover sloped to prevent water accumulation
Technical Specifications
1. Operation Voltage : Up to 110 kV line to line systems
2. Rated Current : Up to 5000 A
3. Ambient Temperature : Up to 55℃ (For higher ambient temperature, consult factory)
4. Resistance Alloy : Stainless-steel (CrNi or CrAl)
5. Different Protection Degree according to demand
