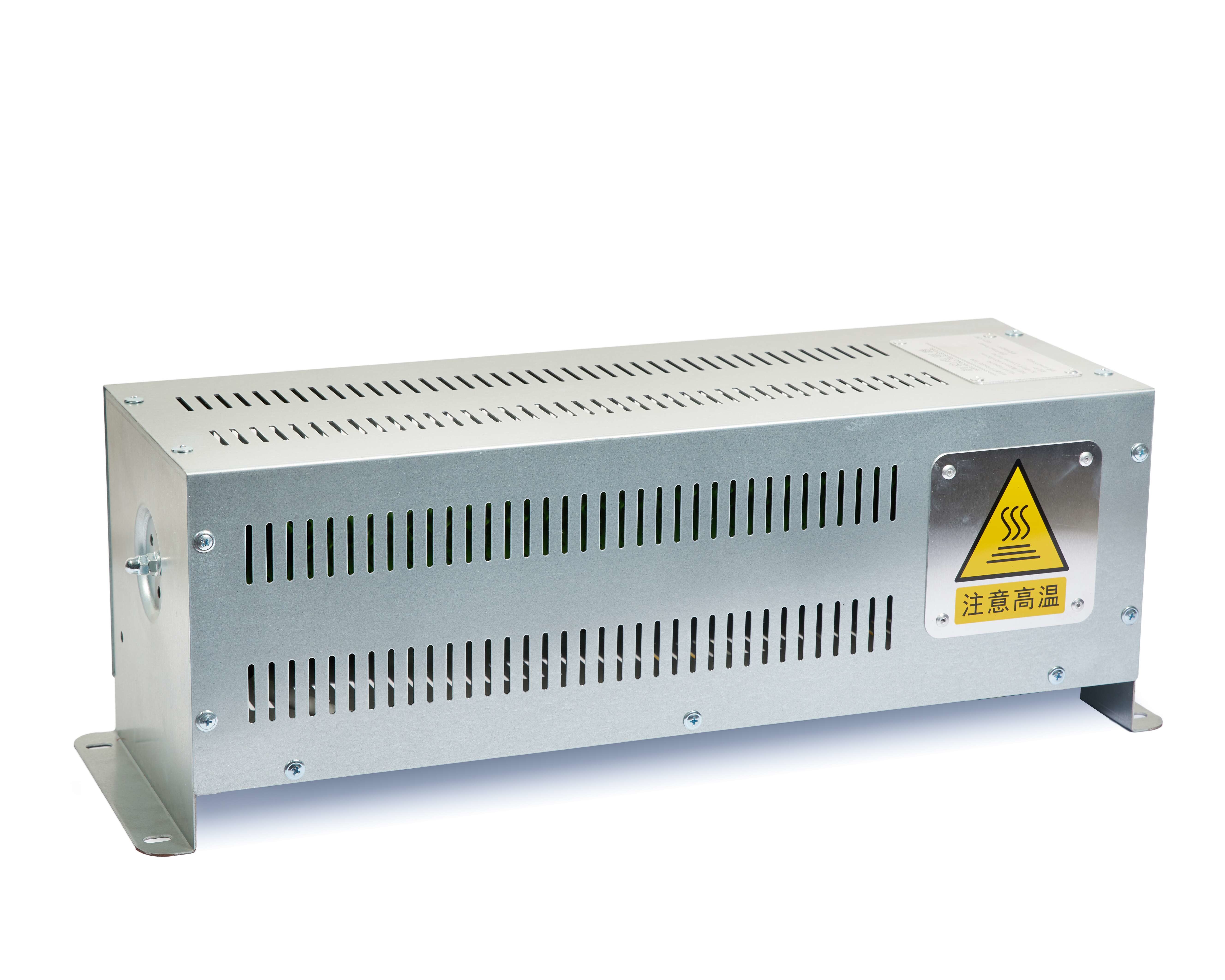

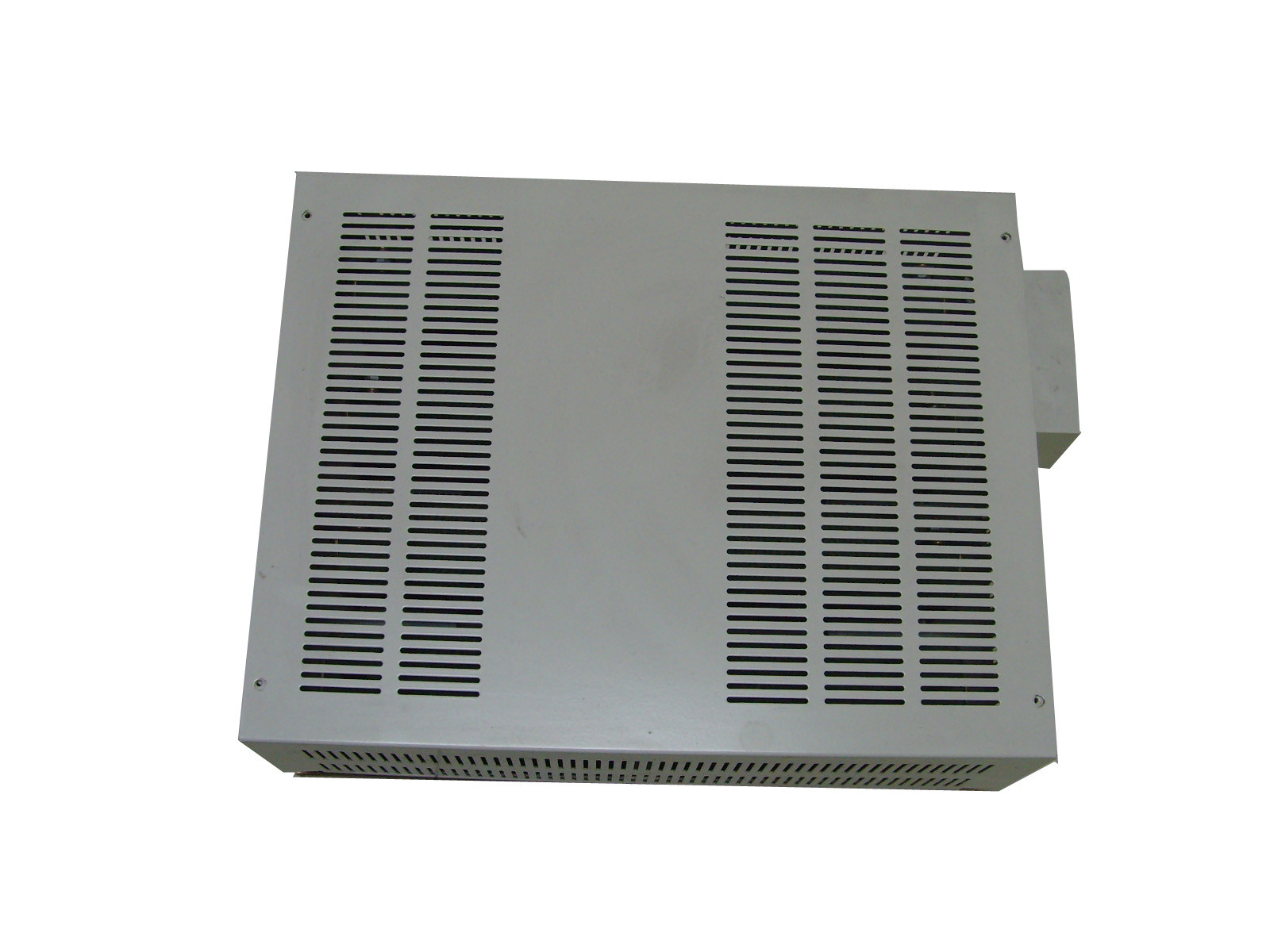

1KW-10KW Dynamic Braking Resistor Unit For Rail Transportation

Place of Origin CHINA
Brand Name JDC
Model Number BR
Minimum Order Quantity 10 Units
Price US$50-US$500
Packaging Details Bulk in Box
Delivery Time 2 Weeks
Payment Terms T/T, Western Union
Supply Ability 10,000 Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 1KW-10KW Max Operation Voltage 800V
Resistance Range 1KΩ-10KΩ IP Grade IP20-IP23
High Light

10KW Dynamic Braking Resistor

,

1KW Dynamic Braking Resistor

,

Rail Transportation dynamic braking unit

Leave a Message
Product Description

Dynamic Braking Resistor for suitable for high-power, high-current braking equipment, rail transportation, new energy



Dynamic Braking Resistor is mainly assembled by electrically heated tube resistors, suitable for high-power, high-current braking equipment, rail transportation, new energy, laboratory testing equipment, elevators, cranes and other energy dissipation braking circuit of invertors.



Product Features
1. Rated power range: 1KW-10KW
2. Rated voltage range: ≤1.2KV
3. Resistance range: 2R-1KR
4. Dielectric strength: AC2.5KV 50Hz/5s
5. IP Protection: IP20
6. Vibration: 0.5g
7. Temperature coefficient: ≤400ppm/°C
8. Element material: 0Cr25Al5
9. Advantages: applicable to relatively harsh environment
