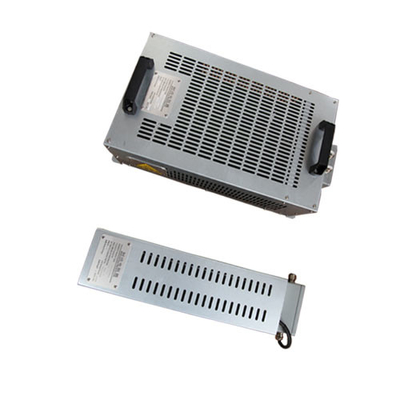

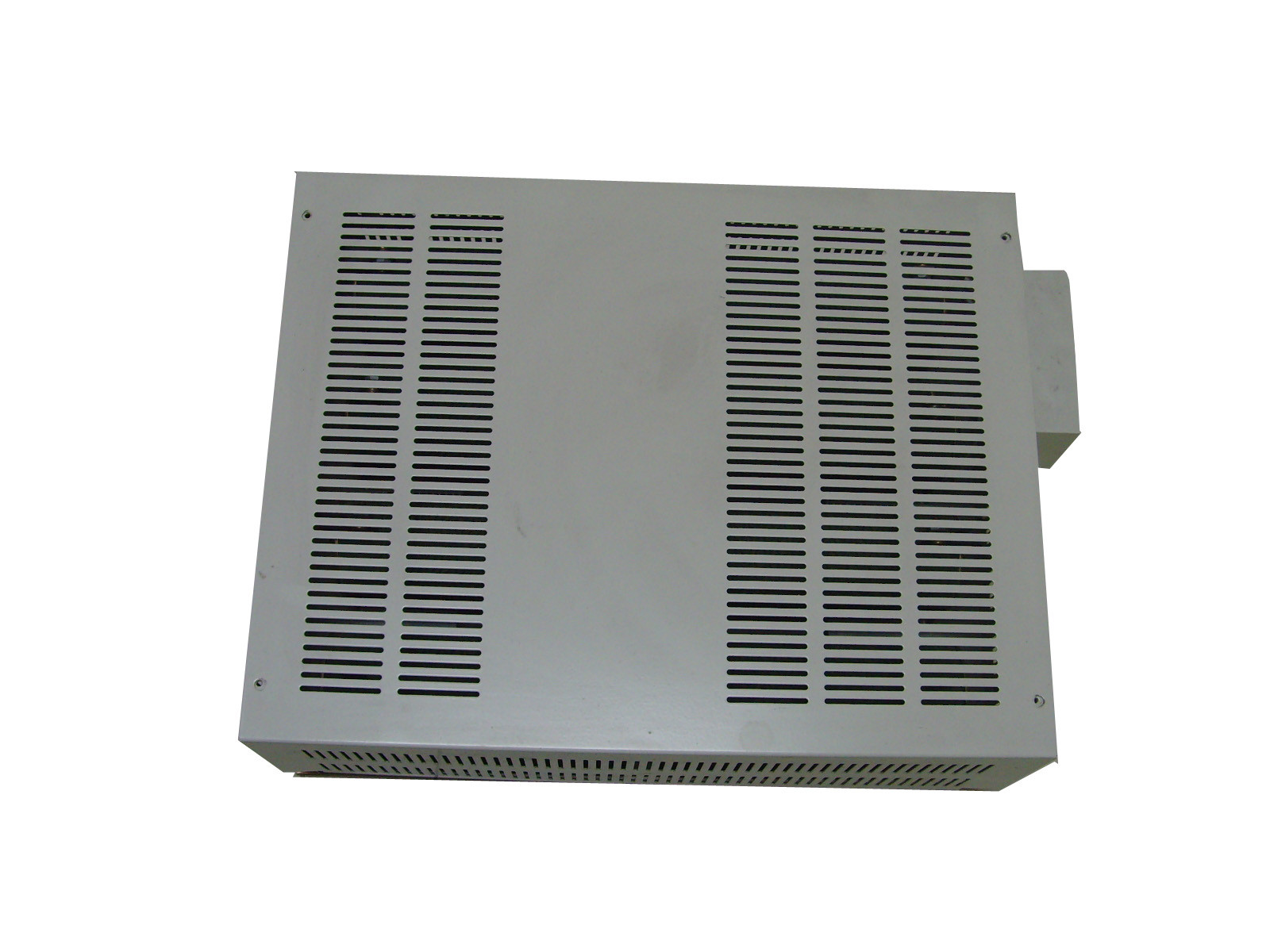

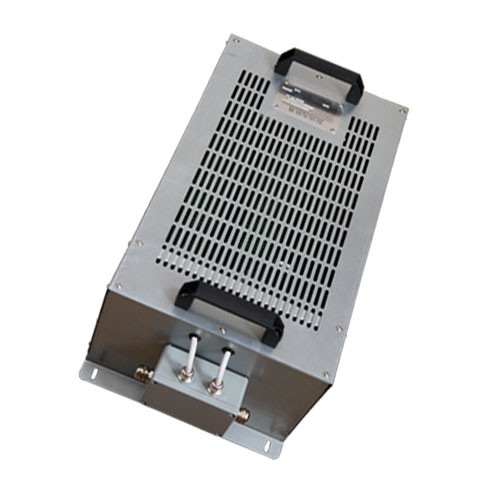

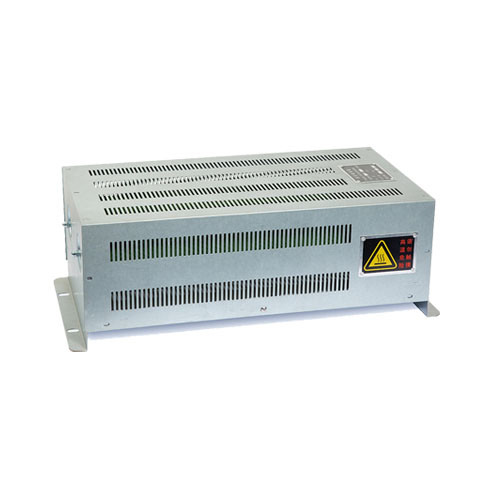

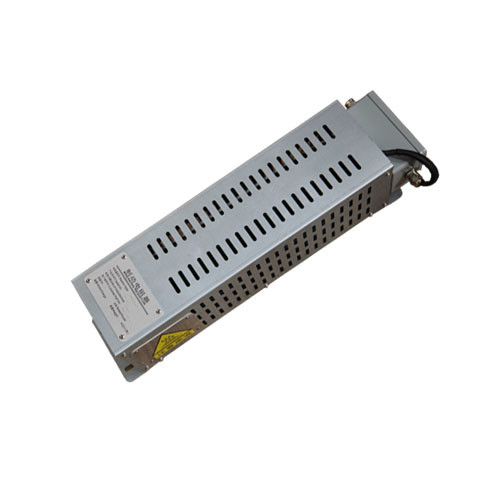

Rated Power From 1KW-100KW Stainless Steel Resistor IP23 Protection Grade

Place of Origin CHINA
Brand Name JDC/RST
Model Number BR
Minimum Order Quantity 1
Price US$30~US$1,500.00
Packaging Details Bulk in Carton
Delivery Time 2 weeks
Payment Terms T/T
Supply Ability 5000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Power 1KW - 100KW Max Temperature Rise 375 ℃
Protection Grade IP23 TCR ±300ppm/℃ ~ 1400ppm/℃
Cooling Methods Air Cooling Temperature Control Available In Customization
Duty Cycle 100%
High Light

Stainless Steel Dynamic Braking Resistor


100KW Dynamic Braking Resistor


IP23 Stainless Steel Resistor

Leave a Message
Product Description

JDC Braking Resistor BR series uses different resistor element to meet different application requirement, comman resistor element include wirewound resistor, stainless steel resistor and alunimium housed resistors, it is widely used in elevators, tower cranes, cranes, hoists, belt conveyors, oilfield kowtowing machines,etc.



  • IP rating: IP20/IP23

  • Short-term overload capacity: 10 times power consumption for 5 seconds, 7 times power consumption for 10s

  • Packing: carton + PE packaging

  • Power range: 1KW-100KW

  • Voltage range: 0V-1410V

  • Resistance range: 1Ω-1KΩ (±5%)

  • Withstand voltage: AC2500V/1min 50Hz

  • Max temperature rise: 375°C, short time/repetitive 40%ED

  • Temperature protection: 125℃ temperature control normally closed swith




Rated Power From 1KW-100KW Stainless Steel Resistor IP23 Protection Grade 0
