Aluminum House Wire Wound Braking Resistors 600W-5000W High Insulation

Place of Origin CHINA
Brand Name JDC
Certification RoHs
Model Number RXLG
Minimum Order Quantity 50
Price US$2-$15 per pcs
Packaging Details Bulk in Carton
Delivery Time 7-10 working days
Payment Terms T/T, L/C, Western Union, Paypal
Supply Ability 100Kpcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Power 600W-5000W Resistance 0.1Ω - 100KΩ
Tolerance ±1%, ±2%, ±5% TCR ± 20-150 Ppm/°C
Technology Aluminum Housed
High Light

Aluminum House Wire Wound Braking Resistors


Wire Wound Braking Resistors 600W


aluminum housed resistor

Leave a Message
Product Description

High Power Metal Clad Braking Resistors, metal terminal connection, 600W-5000W


  1. Insulation is applied through a high-temperature process.
  2. An aluminum encased consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure.
  3. After high-temperature anodization, the enclosure is filled with a special non-flammable cement paste and hardening.
  4. Since this component is embedded in the heat-proof cement, it is not affected by external mechanical force, and dusty environments.



  1. Aluminum house, good heat dissipation.
  2. High Insulation alibility
  3. Widely used in inverter, elevator and UPS system.

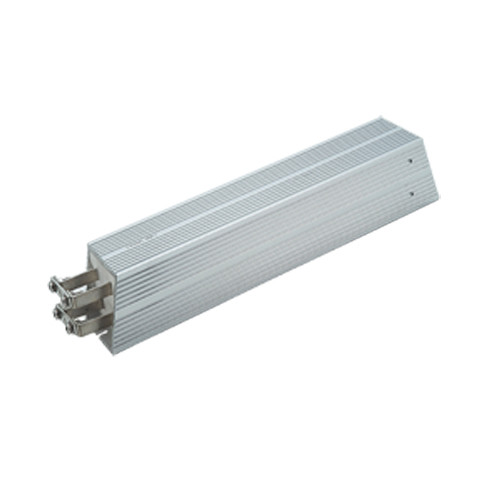

Aluminum House Wire Wound Braking Resistors 600W-5000W High Insulation 0


Type Rated power
Resistance range
Tolerance Dimension (mm) High Temperature Cable Remark
L1±1.5 L2±1 W±1 H±1
AS-T 60 0.1~10K ±1%(F)
115 98 40 20



AS-T 80 0.1~10K 140 123
AS-T 100 0.1~10K 165 148
AS-T 120 0.1~10K 190 173
AS-T 150 0.1~10K 215 198
AS-T 200 0.1~10K 165 147 60 30
AS-T 300 1~10K 215 197
AS-T 400 1~10K 265 247
AS-T 500 1~10K 335 317
AS-T 800 1~10K 400 382 60 60
AS-T 1000 1~10K 400 384 50 107
AS-T 1200 1~10K 450 434
AS-T 1500 1~10K 485 469
AS-T 2000 1~10K 550 534


Electrical Performance:


Inspection item Function requirement Test method
Insulation resistance >1GMΩ 500VDC,1min
Withstand voltage No breakdown and arc flying 3000VAC,5s
Over load No visible damage, △R≤±(1%R+0.05Ω) 10 Times,5s
Terminal tensile strength No visible damage, △R≤±(1%R+0.05Ω) 20N,10s
Temperature Change No visible damage, △R≤±(2%R+0.05Ω) -55℃~+200℃, 3 cycles
Vibration No visible damage, △R≤±(2%R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5%R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10%R+0.1Ω) 25℃,Ur,1000h
