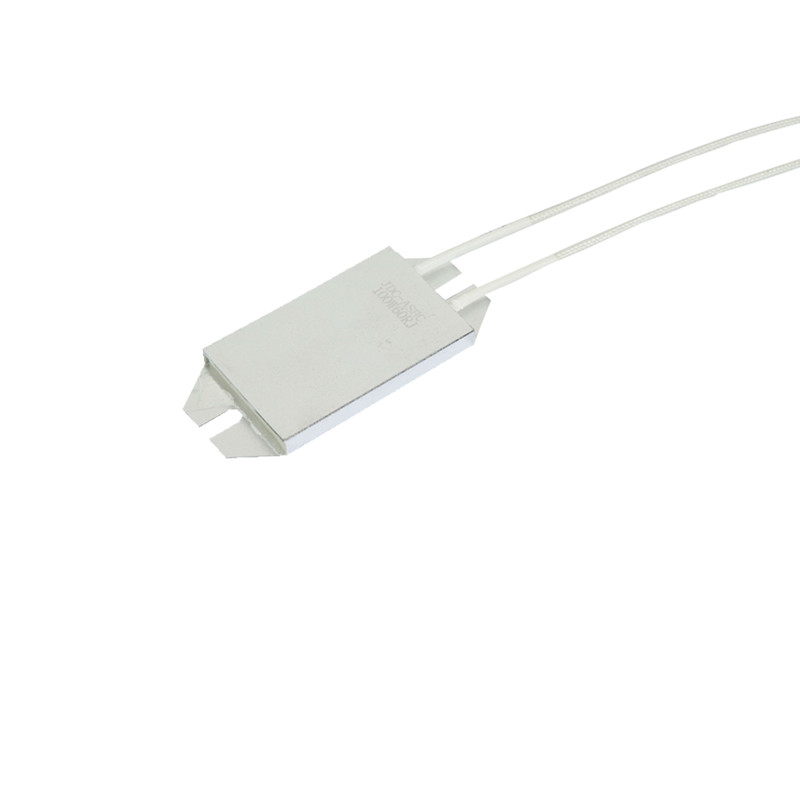

50W Low Profile Aluminum Housed Wirewound Resistors High Power
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | RXHB |
| Minimum Order Quantity | 100PCS |
| Price | US$2-$3.5 per pcs |
| Packaging Details | Bulk in Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 100Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 50W | Resistance | 0.1Ω - 1KΩ |
|---|---|---|---|
| Tolerance | ±1%, ±2%, ±5% | TCR | ± 20-300 Ppm/°C |
| Technology | Aluminum Housed | ||
| High Light | Low Profile Aluminum Housed Wirewound,50W Aluminum Housed Wirewound Resistors,Aluminum high power wire wound resistor |
||
Product Description
50W Low profile aluminum shell resistor, ultra-thin, high power, wirewound
Dimensions:
Electrical Performance:
| Inspection item | Function requirement | Test method |
| Insulation resistance | >50MΩ | 500VDC,1min |
| Withstand voltage | No breakdown and arc flying | 1000VAC,5s |
| Over load | No visible damage, △R≤±(1％R+0.05Ω) | 10 Times,5s |
| Terminal tensile strength | No visible damage, △R≤±(1％R+0.05Ω) | 20N,10s |
| Temperature Change | No visible damage, △R≤±(2％R+0.05Ω) | -55℃~+200℃, 3 cycles |
| Vibration | No visible damage, △R≤±(2％R+0.05Ω) | 10Hz~500Hz,50m/s²,30min |
| Damp heat steady state | No visible damage, △R≤±(5％R+0.1Ω) | 40±2℃,RH(90~95)%,96h |
| Endurance | No visible damage, △R≤±(10％R+0.1Ω) | 25℃,Ur,1000h |
