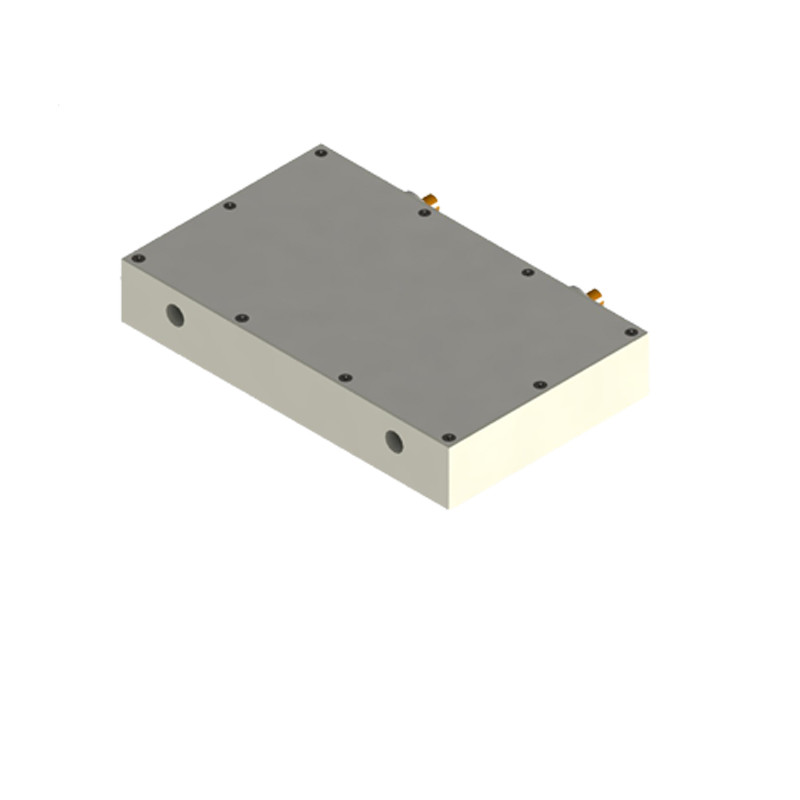

Water Cooling 6063 T6 Aluminium Housed Resistor Module Design 5KW Rated Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Rated Power | 5KW | Short Pulse Power | 25KW/1S |
---|---|---|---|
Resistance Range | 0-20R | Cycle Power | 15KW/0.5S ON 1S OFF |
Cooling Method | Pure Water | Shell Material | 6063-T6 Aluminum |
High Light | Power Wirewound Aluminium Housed Resistor,6063 T6 Aluminium Housed Resistor,5KW Power Wirewound Resistors |
Product Description
Water Cooling Resistor
Features
- Small volume and high power
- The resistance value of resistor can be adjusted in a wide range: 0 ~ 20 Ω
- Small change rate of resistance value in hot state: the resistance piece is made of nichrome material with low temperature coefficient, and the change rate of resistance value in hot state can not be higher than 3%
- Good heat dissipation: the resistance matrix is protected by aluminum shell and dissipated by pure water
- Strong corrosion resistance: the resistance piece is made of nichrome alloy and the shell is made of 6063-T6 aluminum, which has strong corrosion resistance
- It can be used in high-voltage places, and non-metallic shell or aluminum shell can be used for live operation
Technical Parameter
Type | Rated Power | Impact Energy | Resistance Range | Tolerance | ΔT(℃) | Dimension(mm) |
S.SL.RM-1kW | 1KW | 5KJ | 0-20R | ±5% | ≤65 | 70×110×30 |
S.SL.RM-2kW | 2KW | 10KJ | 0-20R | ±5% | ≤65 | 84×110×30 |
S.SL.RM-5kW | 3KW | 25KJ | 0-20R | ±5% | ≤65 | 168×110×30 |
