ROHS Compliant Flame Proof Flat Wire Wound Fixed Resistors RGJ Series 20W-340W

Place of Origin CHINA
Brand Name JDC
Certification ROHS&Reach
Model Number RGJ
Minimum Order Quantity 100PCS
Price $1.5-$5.5
Packaging Details Bulk in Carton
Delivery Time 2 weeks
Payment Terms T/T, L/C
Supply Ability 100,000 PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 20W-340W Resistance Range 0.1R -50KR
Resistance Tolerance ±1%,±2%,±5% TCR ±200ppm/℃ ~ 400ppm/℃
Lead Time 14 Days Application Educational Modeling
High Light

Flat Wire Wound Fixed Resistors

,

Flame Proof Fixed Resistors

,

340W Power Wirewound Resistors

Leave a Message
Product Description

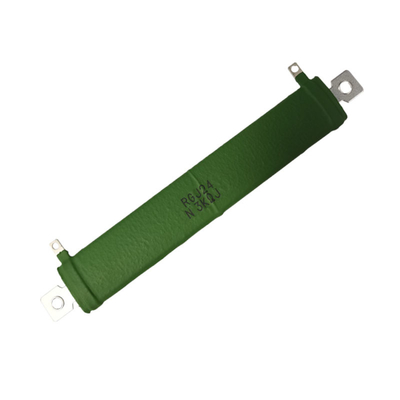

Flame Proof Flat Wire Wound Fixed Resistors RGJ Series



Construction :



  • RGJ series resistor is a flat tubular ceramic rod has two terminals and is wirewound with either copper wire or chromium alloy wire as a resistance element.
  • Mainly utilized for industrial installations where height is limited. Features excellent windings, taps adding, low impedance, and PC board insertable.

Application:

  • Educational modeling applications
  • Load testing, industrial machinery
  • Electric power distribution
  • Instruments
  • Automation control installations

Characteristics:

Test items Test method Specified value

Resistance

temperature charact

Normal 125°C

<20Ω:±400ppm/

20Ω±260ppm/

Short-time overload 10 x rated power for 5 sec. ±(2%+0.05Ω)
Insulation resistance DC 500V megger 20MΩ or higher



Withstanding voltage



AC1000V for single



±(0.1%+0.05Ω)

No breakdown



Terminal strength

44N for 30 sec.



No mechanical damage



Moisture load life

40°C 90-95%

1/10 x rated power for 500 hrs.



±(3%+0.05Ω)



Rated load

Rated voltage for 30 min.

350°C or lower

±(0.5%+0.05Ω)



Load life

Rated power for 500 hrs.

1.5 hrs. ON 0.5 hrs OFF



±(5%+0.05Ω)



Heat resistance

350°C for 2 hrs.



No mechanical damage



Thermal shock

Rated power for 30 min.

-55°C for 15 min.



±(2%+0.05Ω)
