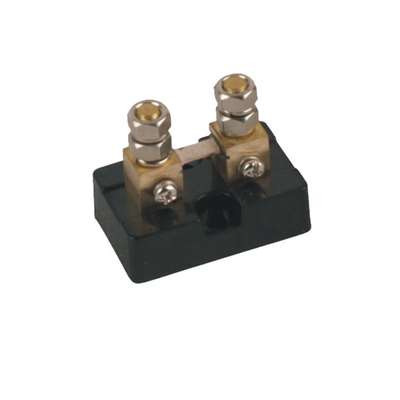

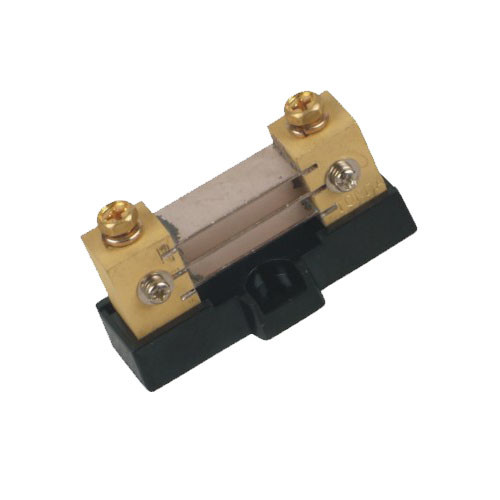

300a 75mv DC Amp Meter With Shunt
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | FL-US |
| Minimum Order Quantity | 100PCS |
| Price | US$2-US$12.00 |
| Packaging Details | Bulk in box |
| Delivery Time | 2 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 20A-500A | Output Voltage | 50mV, 60mV, 100mV |
|---|---|---|---|
| Tolerance | 0.5% | ||
| High Light | 75mv DC Amp Meter With Shunt,300a DC Amp Meter With Shunt,shunt 300a 75mv |
||
Product Description
DC Ammeter SHUNTS
A range of direct current shunts which provides an accurate millivolt signal, exactly proportional to the system current. They can be used to drive ammeter indicators, overload protection and control devices. These shunts enable the measurement of D.C. current in ranges from 10A to 10000A with various output options available.
Features:
1. Accuracy class 0.5
2. Temperature Coefficient 0.1%/10°K
3. Overload withstand 1.2 rated current
4. 5 second withstand 10A - 250A = 10 x rated current
5. 250A - 2000A = 5 x rated current
6. 2000A - 10000A = 2 x rated current
7. Operating temperature -25°C to +55°C
8. Rating 10A up to 10000A
9. Outputs 50mV, 60mV, 75mV, 100mV, 150mV
