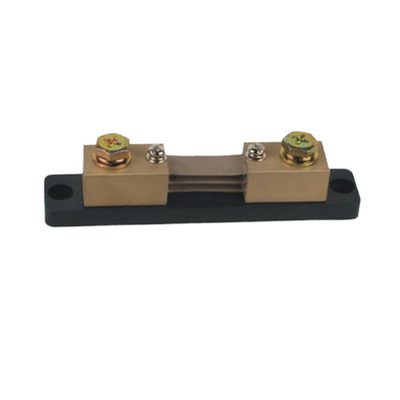

US Type DC Current Shunt , Amp Meter Shunts 50mV 60mV 75mV output
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | FL-US |
| Minimum Order Quantity | 100PCS |
| Price | US$3.5-US$25.00 |
| Packaging Details | Bulk in box |
| Delivery Time | 2 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 20A-500A | Output Voltage | 50mV, 60mV, 75mV, 100mV |
|---|---|---|---|
| Tolerance | 0.5% | ||
| High Light | US Type DC Current Shunt,60mV DC Current Shunt,Amp Meter Shunts 50mV |
||
Product Description
DC Meter Shunts, US Type, Current Sense, Busbar, Base Mounted, 0.5% accuracy, 50mV, 60mV, 75mV, 100mV output
Features:
1. 1 Amp to 1000 Amp
2. 0.5% Tolerance
3. Manganin Resistive Element
4. Non-Inductive Metal Element
5. Command application: Power Supply, Power Converters, Current Measurements
| Type | Specifications |
| Rated Output | 50mV, 60mV, 75mV, 100mV, Custom |
| Voltage Tolerance | ± 0.5% |
| Operating Temp. | -30°C to 70°C |
| Storage Temp. | -55°C to 80°C |
| Materials | Resistance Element: Manganin Terminal Block RSN: Brass Base: Bakelite |
