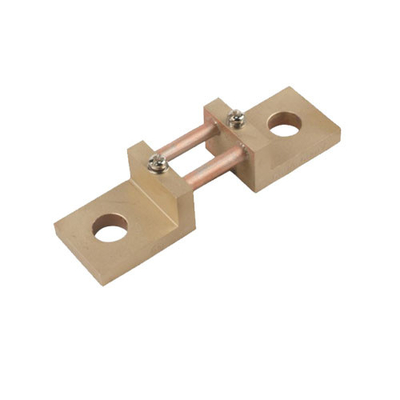

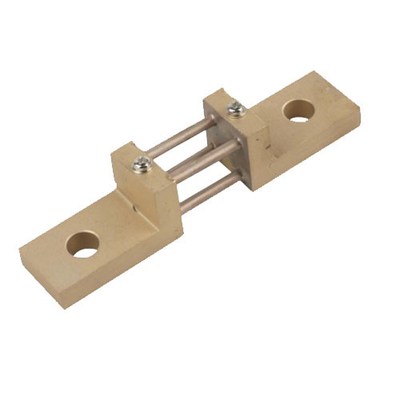

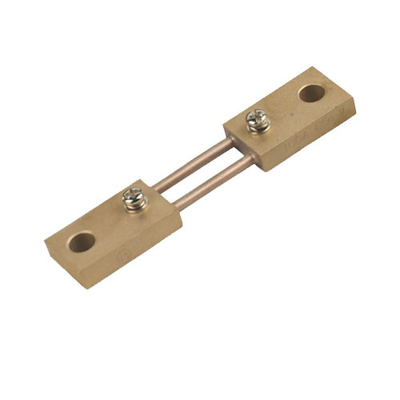

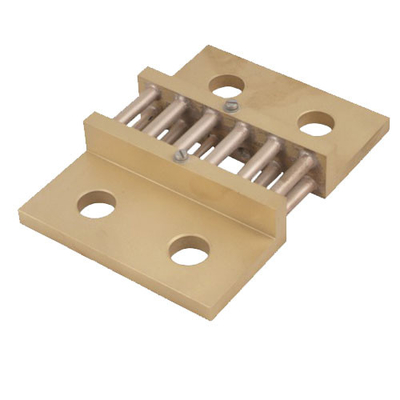

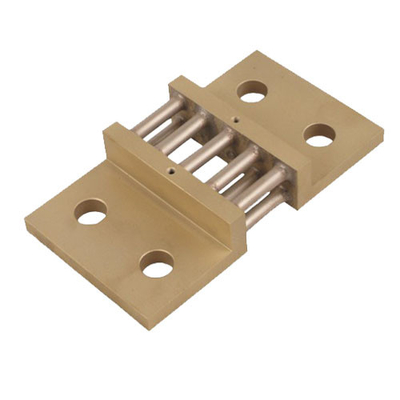

6A-3000A Sensing DC Current Shunt Indian Type for Power supplier

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Rated Current | 6A-3000A | Output Voltage | 50mV, 60mV, 75mV, 100mV, Custom |
---|---|---|---|
Tolerance | 0.5% | ||
High Light | 3000A DC Current Shunt,DC Current Shunt Indian Type,Power Supplier current sensing shunt |
Product Description
Current Sensing Shunt, Indian Type, High Precision, widely used in Power supplier, DC Meter
Electrical Performance:
Test Items
|
Specification |
Rated Voltage Drop | 50mV, 60mV, 75mV, 100mV. |
Accuracy Class | 0.5% |
Over Rating Capacity | 120% of rated current for 2 hours. |
Ambient Conditions | Temperature: -40~+60°C; Relative humidity belows 95% 35°C |
Giving Out Heat When Loaded | Not be more than 80°C at rated current of below 50A.; not be more than 120°C at rated current of 50A and over 50A. |
Capacity to Withstand Mechanical Force | It is capable of withstanding the transport bumping at acceleration of 70m/S2 and shock frequency of 80-120 times/min for 5 hours. |
