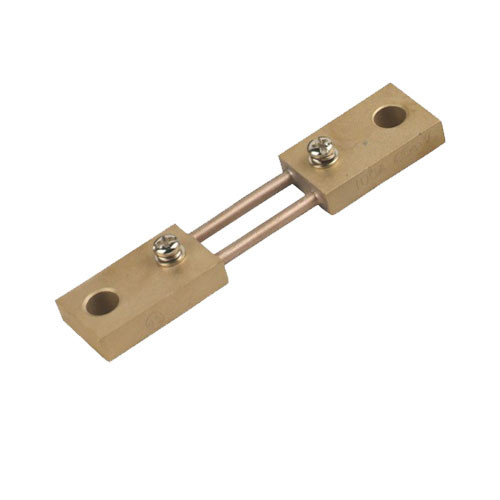

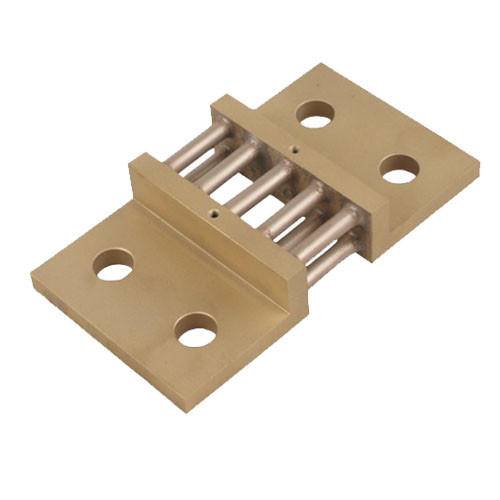

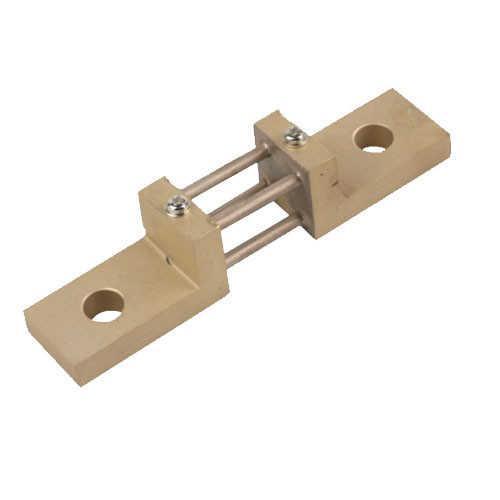

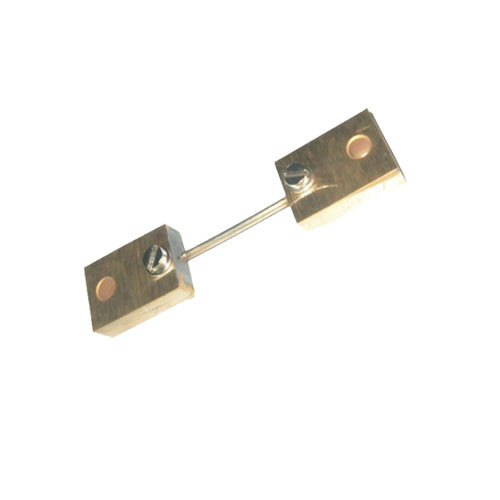

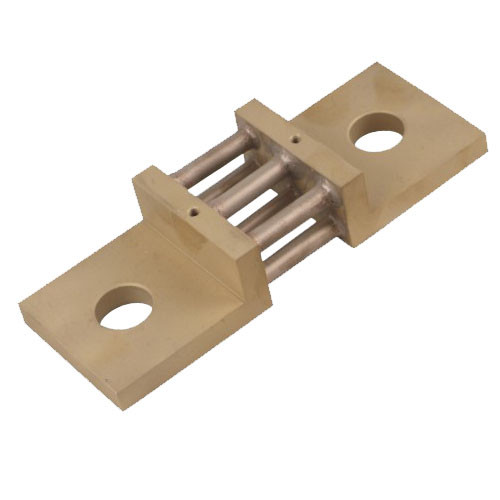

Base Mounted Bus bar DC Ammeter Shunts low resistance 6A-3000A

Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number FL-TS
Minimum Order Quantity 100 PCS
Price US$2.00-US$50.00 Per PCS
Packaging Details Bulk in Box
Delivery Time 3 Weeks
Payment Terms T/T, Western Union
Supply Ability 100,000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Current 6A, 15A, 40A, 80A, 100A, 150A, 200A,400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A Output Voltage 50mV, 60mV, 75mV, 100mV
Accuracy 0.25, 0.5
High Light

Base Mounted DC Ammeter Shunts


Bus Bar DC Ammeter Shunts


shunt type ammeter

Leave a Message
Product Description

DC Meter Shunts, Base Mounted, Bus bar, 6A-3000A, 50mV, 60mV, 75mV, 100mV


DC Ammeter Shunts are low resistance precision resistors used to measure AC or DC electrical currents by the voltage drop those currents create across the resistance.
Power Rating : Watts (W) = Current (I2) x Resistance Value (R)
The heat produced is power measured in Watts (W).
Current shunts dissipate heat from the current flowing through them, when they get hot.
In practice current shunt is often rated to be used continuously at only 2/3 of their "rated current".
Since that heat can change their resistance and even permanently damage the shunt, so it is often given a power rating or a derating factor.
Calculate Current : Current (I) = Voltage (V) / Resistance Value (R)
By inserting a current shunt into a circuit to get the current you want to measure while the voltage dropped across the shunt.
Then knowing the resistance of the current shunt you can calculate the current by using Ohm's law.
