Noise Suppression Aluminum Clad Resistor , 200w 100 Ohm Resistor
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | AS-C |
| Minimum Order Quantity | 500PCS |
| Price | US$1.2-US$3.5 |
| Packaging Details | Bulk in Carton |
| Delivery Time | 2 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Housed Wirewound Resistors | Rated Power | 50W-200W |
|---|---|---|---|
| Resistance Range | 0.1R-10KR | Tolerance | ±1%, ±2%, ±5% |
| TCR | ≤300PPM | Working Temperature | -55°C To +275°C |
| High Light | Noise Suppression Aluminum Clad Resistor,200w Aluminum Clad Resistor,200w 100 ohm resistor |
||
Product Description

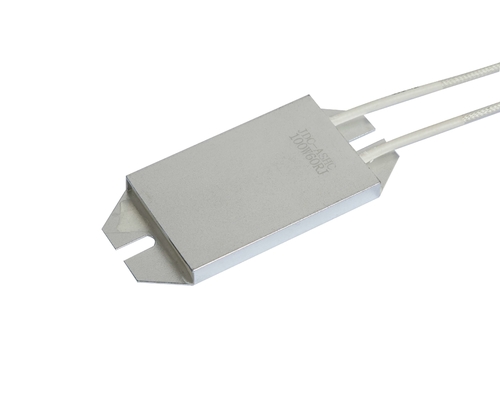

200w 100 Ohm Aluminum Clad Wirewound Noise Suppression Resistor For Equipment Industry
Features:
1, metal aluminum shell encapsulation, good heat dissipation performance, suitable for heat sink installation, can be used in harsh environments for a long time.
2, small size, large power load.
3, high insulation, integrated with flame retardant inorganic materials, good vibration resistance.
4, a variety of wiring met
hods, easy to install.
Product description:

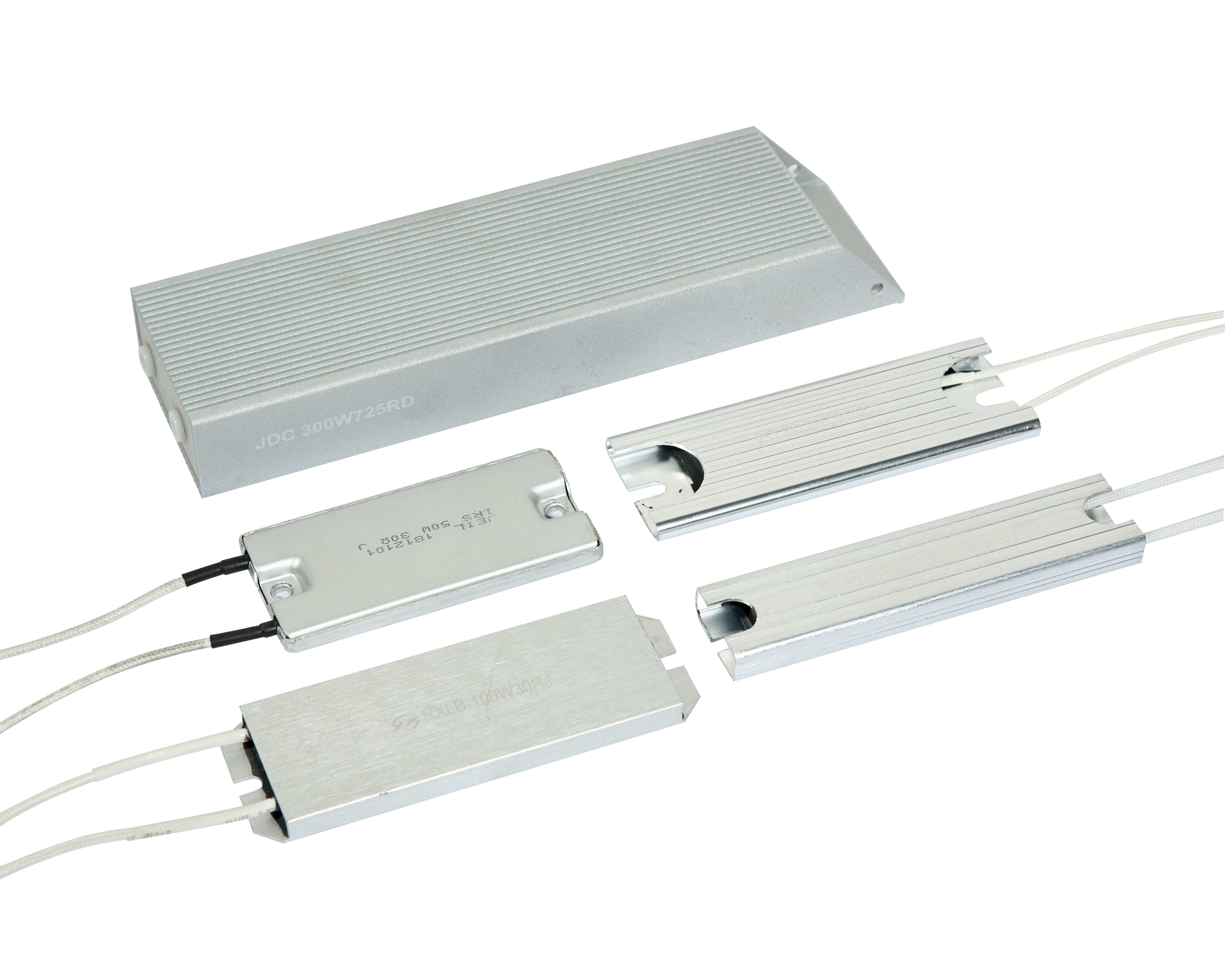

ASC (ship shape)and ASCB(ultrathin shape),the mould can get more than 20 species to let resistors suit for environment installa- tion and application.
Aluminum resistor is also called braking resistor or charge resistor or bleeder resistor or current-limited resistor or ageing resistor or load resistor.Resistance to shock,strength power ,fast dissipation heat , high stability,long life.
Construction:
- An aluminum encased consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure.
- Following high-temperature anodization, the enclosure is filled witha special non-flammable cement paste and after hardening. Insulation is applied through a high temperature process.
- Since this component is embedded in the heat-proof cement, it is not affected by external mechanical force, and dusty environments.
Applications:
The product is easy to utilize and install, and suitable for a wide range applications. Applications include industrial machinery, load testing, electric power distribution, instruments, and automated control installations.
