Commercial Power Chassis Mount Resistors , Wirewound Aluminum Housed Resistors

Place of Origin China
Brand Name JDC
Certification ROHS & Reach
Model Number RH
Minimum Order Quantity 100
Price US$3-$12 per pcs
Packaging Details Bulk in Cartons
Delivery Time 7-10 days
Payment Terms TT, L/C, Paypal, Western Union,
Supply Ability 1,000 Kpcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power Range 75W-500W Resistance 0.1R-100kR
Tolerance ±1%, ±2%, ±5%, Operating Temperature -55°C~275°C
TCR ± 20-150 Ppm/°C
High Light

Commercial Power Chassis Mount Resistors

,

Wirewound Aluminum Housed Resistors

,

Commercial Power aluminum housed resistors

Leave a Message
Product Description

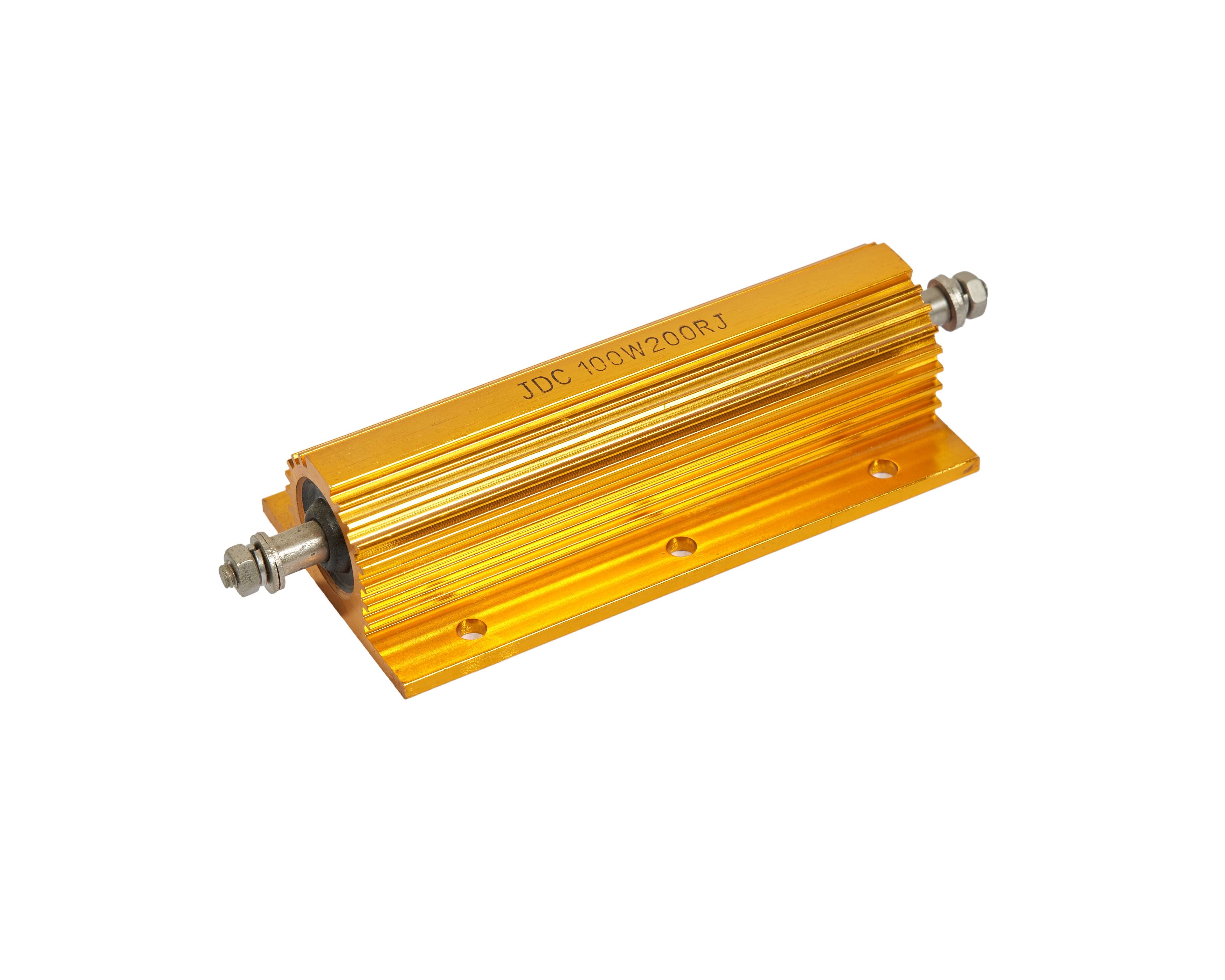

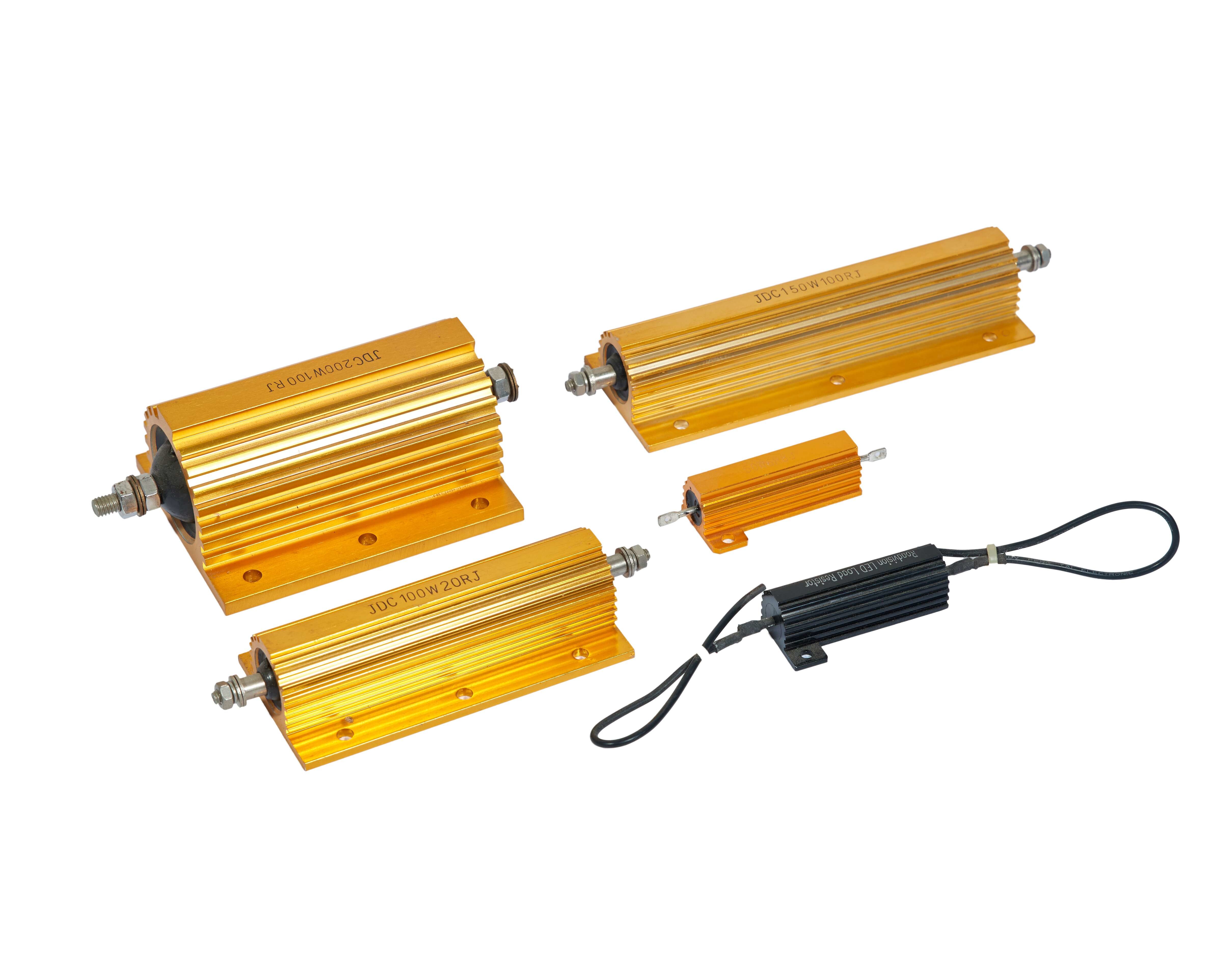

Chassis Mount Wirewound Resistors, Commercial Power,Aluminum Housed, Heatsink



It has excellent heat dissipating capability by using heat sink design on aluminum case, Wirewound resistors or Film resistors will be filled in aluminium case with molded or sand instuction.



Dimensions:



Commercial Power Chassis Mount Resistors ,  Wirewound Aluminum Housed Resistors 0

Commercial Power Chassis Mount Resistors ,  Wirewound Aluminum Housed Resistors 1

Commercial Power Chassis Mount Resistors ,  Wirewound Aluminum Housed Resistors 2

Commercial Power Chassis Mount Resistors ,  Wirewound Aluminum Housed Resistors 3



Features:

  1. Rated Power: 5W, 10W, 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
  2. Wide range of values from 0.05 Ω to 82 kΩ
  3. Temperature coefficient of resistance: ± 10-300 ppm/°C
  4. Resistance tolerance:± 1%,± 2%,± 5%
  5. Operating Temperature Range: -55°C to +275°C
  6. Non-inductive is available
