100W Aluminium Housed Resistors For Maximum Heat Dissipation Mounting
| Place of Origin | China |
|---|---|
| Brand Name | JDC |
| Certification | ROHS & Reach |
| Model Number | RH |
| Minimum Order Quantity | 100 |
| Price | US$3-$12 per pcs |
| Packaging Details | Bulk in Cartons |
| Delivery Time | 7-10 days |
| Payment Terms | TT, L/C, Paypal, Western Union, |
| Supply Ability | 1,000 Kpcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power Range | 5W-500W | Resistance | 0.1R-100kR |
|---|---|---|---|
| Tolerance | ±1%, ±2%, ±5%, | Operating Temperature | -55°C~275°C |
| TCR | ± 20-300 Ppm/°C | ||
| High Light | 100W Aluminium Housed Resistors,Heat Dissipation Aluminium Housed Resistors,Heat Dissipation aluminium housed resistor |
||
Product Description

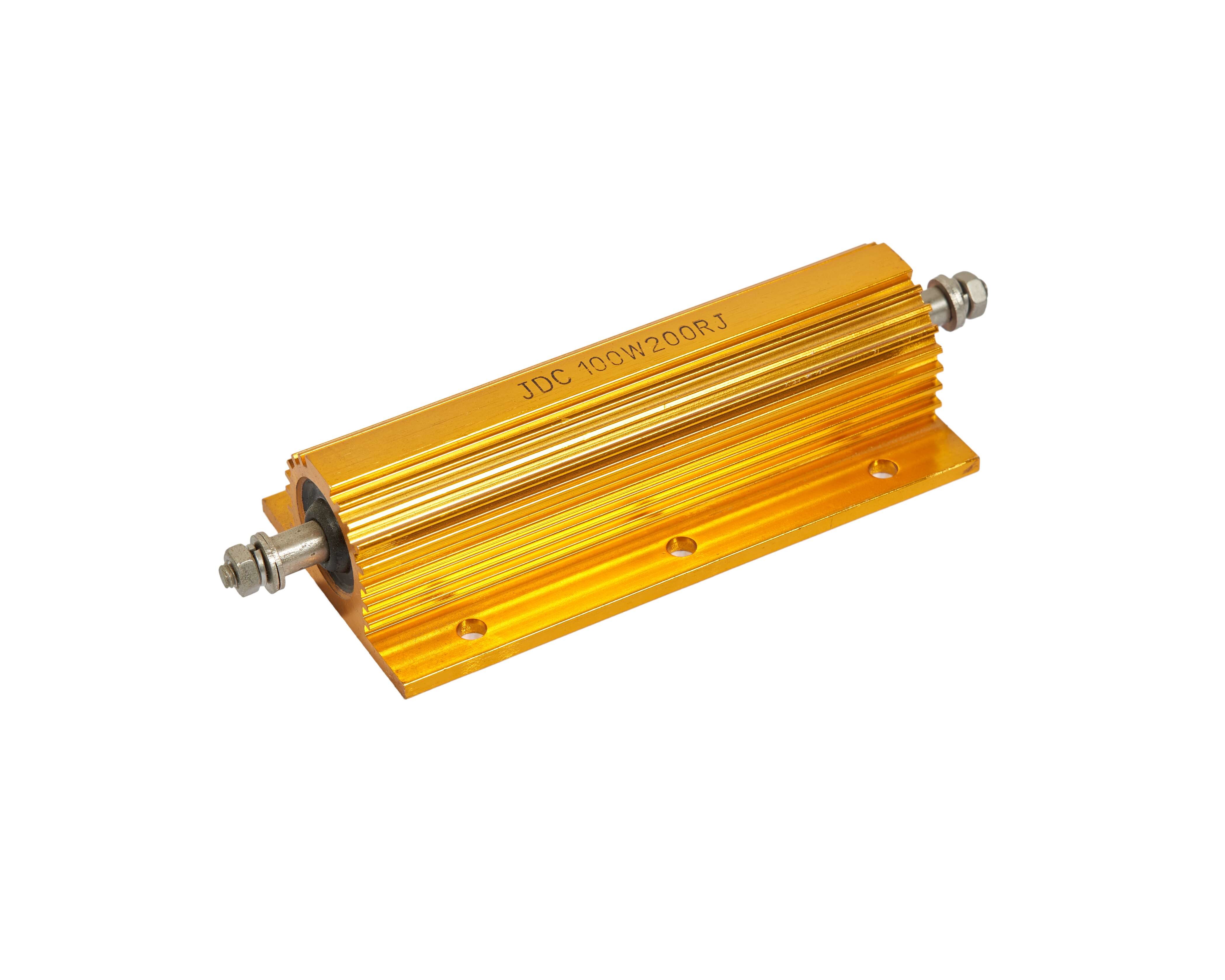

100W Aluminium housed resistor, Heatsink
RH aluminum housed resistor is designed for maximum heat dissipation mounting solidly to metal chassis surface for maximum heat transfer. RH series are outstanding for their high power dissipation with precision tolerances in minimum physical sizes.
Dimensions:
Features:
- Rated Power: 5W, 10W, 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
- Wide range of values from 0.05 Ω to 82 kΩ
- Temperature coefficient of resistance: ± 10-300 ppm/°C
- Resistance tolerance:± 1%,± 2%,± 5%
- Operating Temperature Range: -55°C to +275°C
- Non-inductive is available
