Aluminium Power Wirewound Resistors

Place of Origin China
Brand Name JDC
Certification ROHS & Reach
Model Number RH
Minimum Order Quantity 100
Price US$3-$12 per pcs
Packaging Details Bulk in Cartons
Delivery Time 7-10 days
Payment Terms TT, L/C, Paypal, Western Union,
Supply Ability 1,000 Kpcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Power Range 5W-500W Resistance 0.1R-100kR
Tolerance ±1%, ±2%, ±5%, Operating Temperature -55°C~275°C
TCR ± 20-300 Ppm/°C
High Light

Aluminium Power Wirewound Resistors


500W Power Wirewound Resistors


50w wirewound resistor

Leave a Message
Product Description

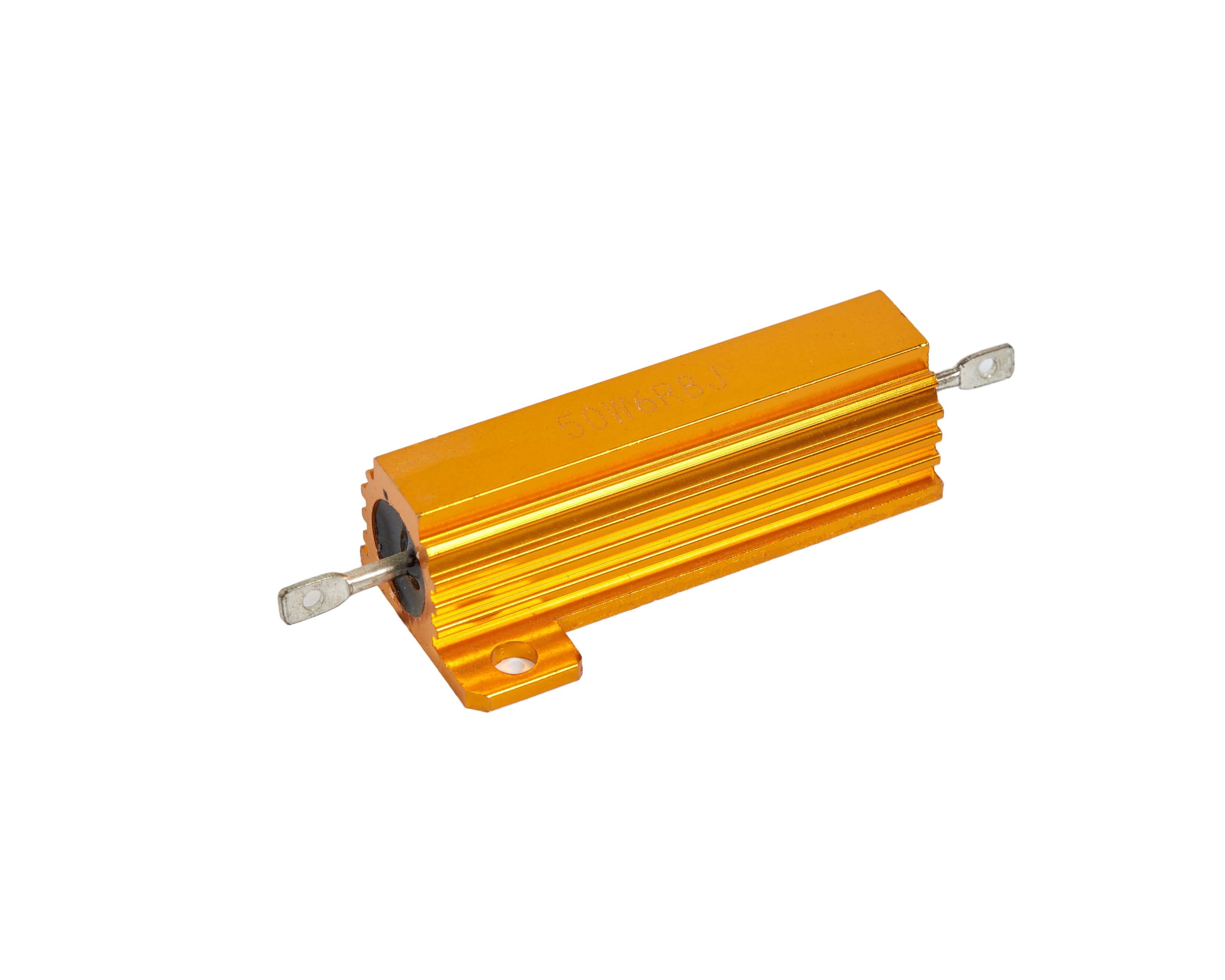

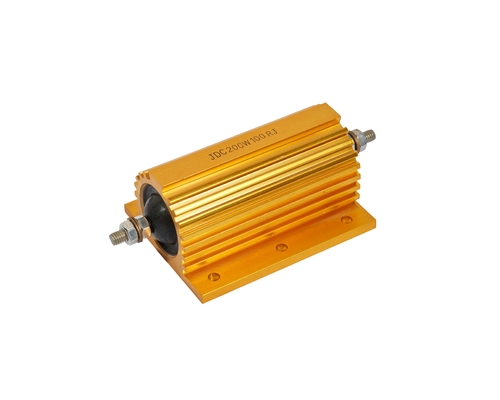

Aluminium housed wirewound resistor, High Power, High pulse


It is a range of extremely stable, high quality Wirewound resistors capable of dissipating high power up to 500W (on a suitable heatsink) in a limited space with relatively low surface temperature.




Aluminium Power Wirewound Resistors 0

Aluminium Power Wirewound Resistors 1

Aluminium Power Wirewound Resistors 2

Aluminium Power Wirewound Resistors 3



  1. Rated Power: 25W, 50W, 75W, 100W, 150W, 200W, 300W, 500W
  2. Wide range of values from 0.05 Ω to 100 kΩ
  3. Temperature coefficient of resistance: ± 10-300 ppm/°C
  4. Resistance tolerance:± 1%,± 2%,± 5%
  5. Operating Temperature Range: -55°C to +275°C
  6. Non-inductive is available
