1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors

Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number RXHB
Minimum Order Quantity 100PCS
Price US$2-$3.5 per pcs
Packaging Details Bulk in Carton
Delivery Time 7-10 working days
Payment Terms T/T, L/C, Western Union, Paypal
Supply Ability 100Kpcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 50W Resistance 0.1Ω - 1KΩ
Tolerance ±1%, ±2%, ±5% TCR ± 20-300 Ppm/°C
Technology Aluminum Housed
High Light

1KΩ Aluminum Housed Wirewound Resistors

,

Low Profile Aluminum Housed Wirewound Resistors

,

50W Low Profile Resistors

Leave a Message
Product Description

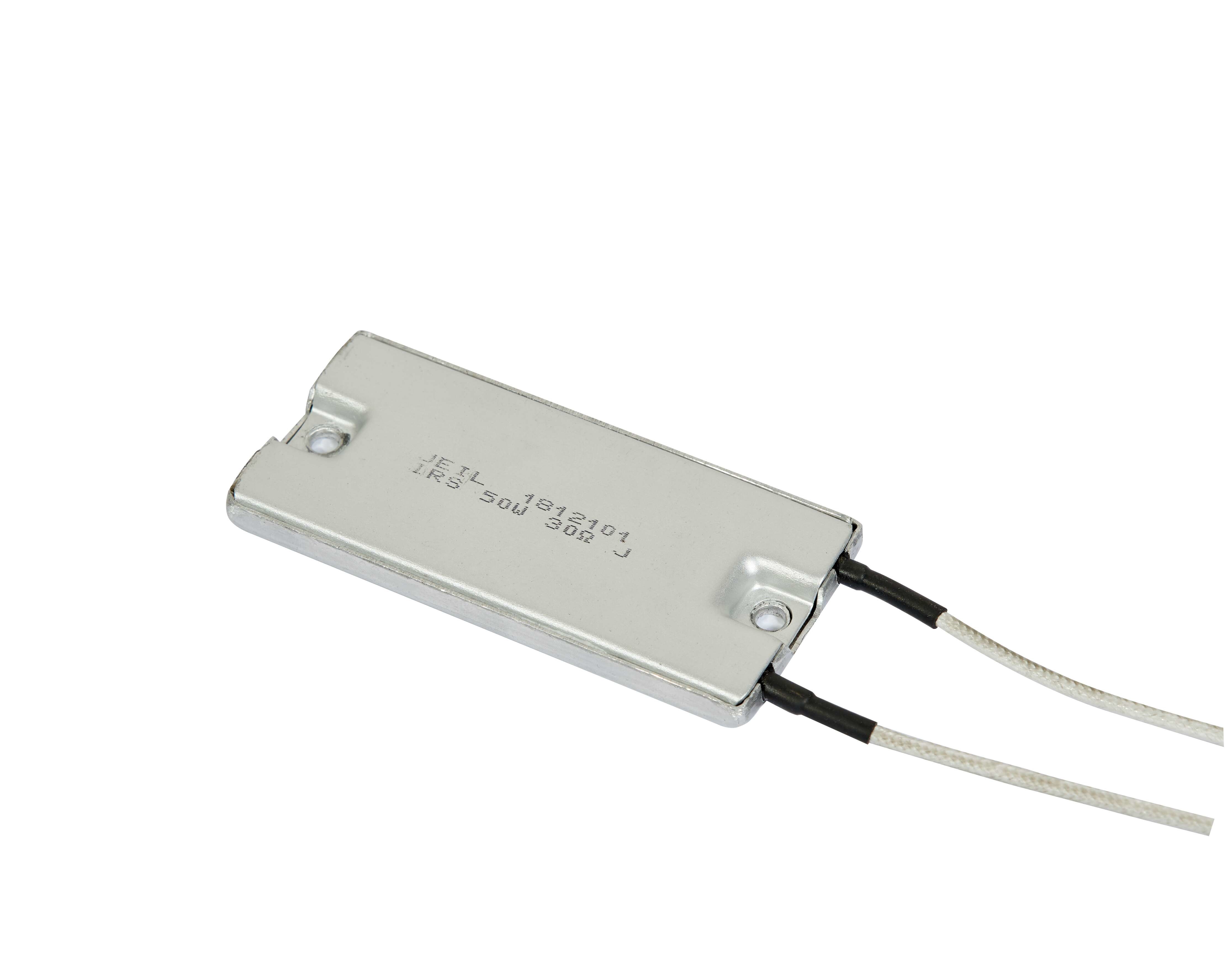

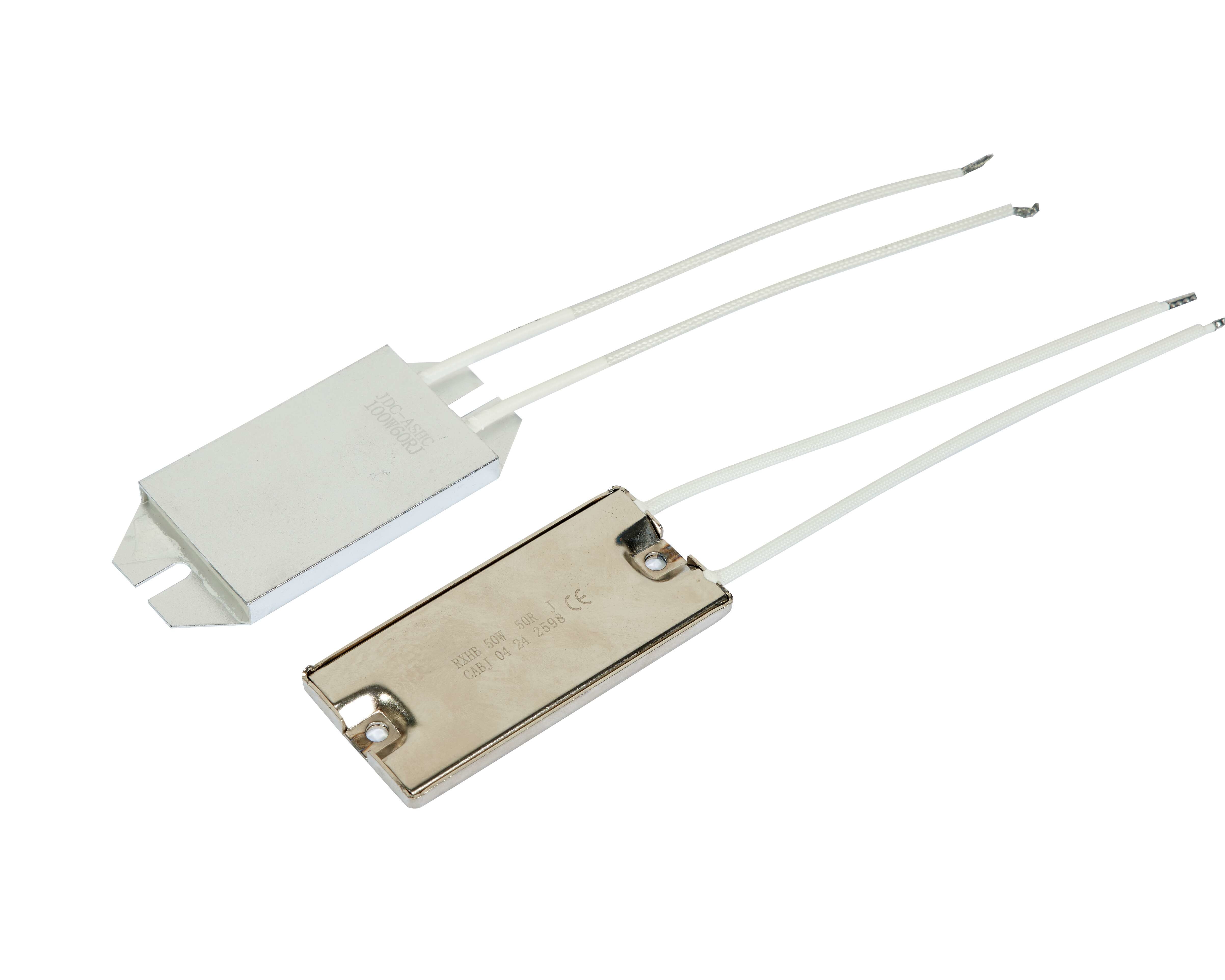

50W Low profile aluminum shell resistor, ultra-thin, high power, wirewound





Dimensions:



1KΩ Aluminum Housed Wirewound Resistors , 50W Low Profile Resistors 0

Type Rated power
(w)
Resistance range
(Ω)
Tolerance Dimension (mm) Cable Spec Remark
L1±1.5 L2±1 W±1 H±1
RXHB 50 50 1(F)
2(G)
5(J)
10(K)
90 78 42 6 1.5~2.5mm²
115~300mm
Welcome to customize









Electrical Performance:



Inspection item Function requirement Test method
Insulation resistance >100MΩ 500VDC,1min
Withstand voltage No breakdown and arc flying 1500VAC,5s
Over load No visible damage, △R≤±(1%R+0.05Ω) 10 Times,5s
Terminal tensile strength No visible damage, △R≤±(1%R+0.05Ω) 20N,10s
Temperature Change No visible damage, △R≤±(2%R+0.05Ω) -55℃~+200℃, 3 cycles
Vibration No visible damage, △R≤±(2%R+0.05Ω) 10Hz~500Hz,50m/s²,30min
Damp heat steady state No visible damage, △R≤±(5%R+0.1Ω) 40±2℃,RH(90~95)%,96h
Endurance No visible damage, △R≤±(10%R+0.1Ω) 25℃,Ur,1000h
