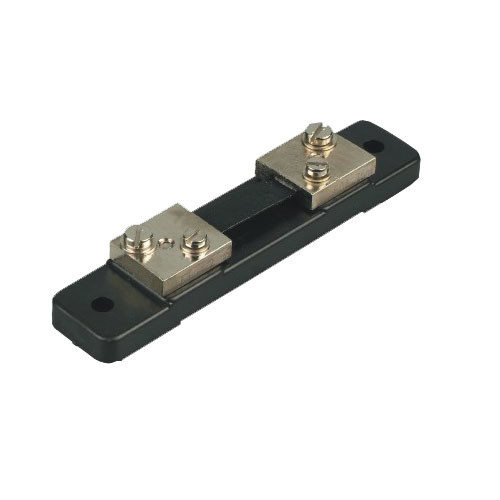

100mV DC Current Shunt , Current Sense Shunt 10A-50A 0.5% Tolerance
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | FL-2 |
| Minimum Order Quantity | 200 PCS |
| Price | US$1.5-US$3.5 |
| Packaging Details | Bulk in Box |
| Delivery Time | 3 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 10A-50A | Output Voltage | 50mV, 60mV, 75mV, 100mV |
|---|---|---|---|
| Tolerance | ±0.25%,±0.5% | Element | Manganin Resistive |
| High Light | 100mV DC Current Shunt,Current Sense Shunt 10A,50A DC Current Shunt |
||
Product Description
Current Sense Shunts, 10A-50A, 0.5% Tolerance, 50mV, 60mV, 75mV, 100mV
Current Sense Shunts are low resistance precision resistors used to measure AC or DC electrical currents by the voltage drop those currents create across the resistance. Sometimes called an ammeter shunt, it is a type of current sensor.
Features:
1. Base Mounted Shunt
2. Current Rating 5 to 1200 Amps
3. 50mV, 60mV, 75mV, 100mV or Custom Output
4. Standard Tolerance ±0.5%
5. Manganin Resistive Element
6. Common Applications: Solar Generators, Wind Power, Heavy Industry, Electroplating, Battery Chargers, Mining
Dimensions(10A-50A):
