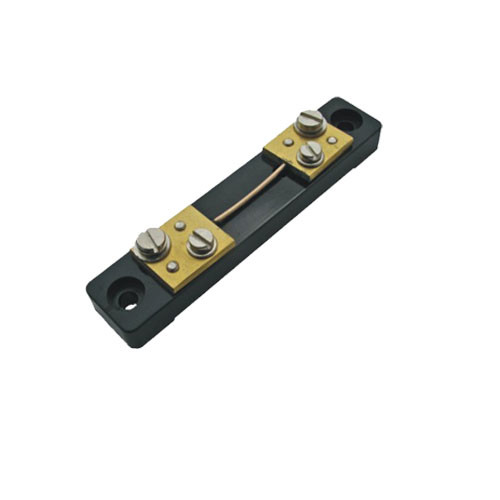

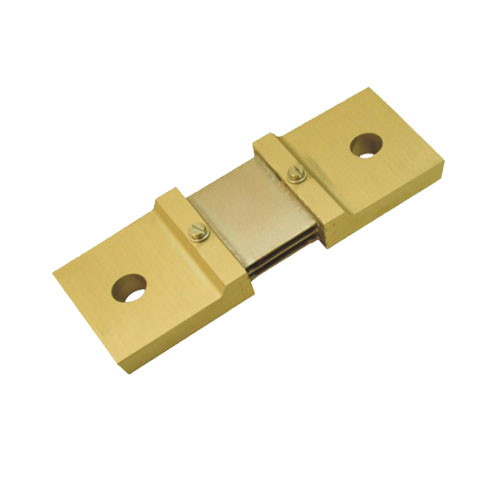

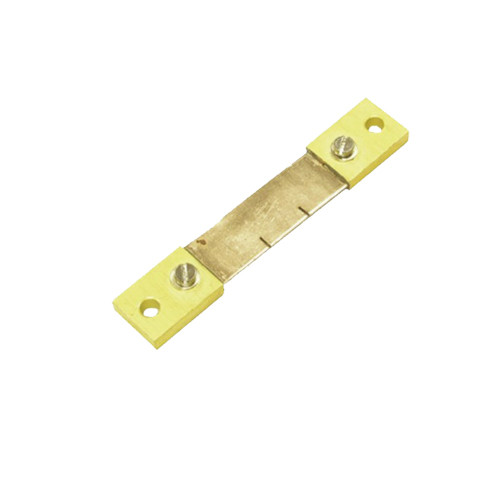

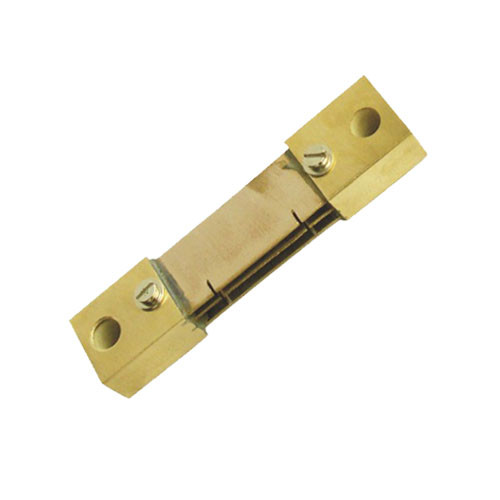

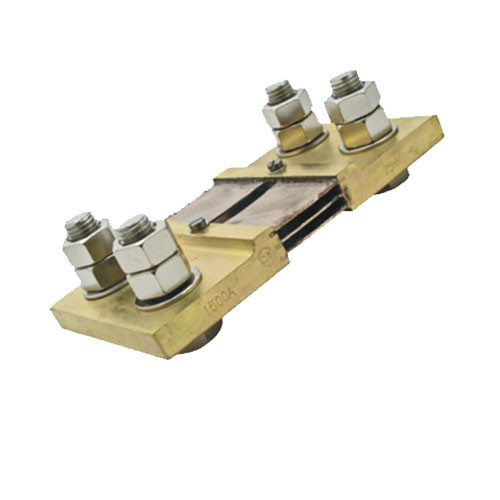

Precision 100 Amp Current Shunt , 50 Amp Dc Ammeter 50mV 60mV
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | FL-RS |
| Minimum Order Quantity | 100 PCS |
| Price | US$2-US$50.00 PER PCS |
| Packaging Details | Bulk in Box |
| Delivery Time | 3 Weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 5A,10A, 30A, 50A, 75A, 100A, 150A, 200A, 300A, 500A, 1000A, 1500A, 2000A, 3000A | Output Voltage | 50mV, 60mV, 75mV, 100mV |
|---|---|---|---|
| Accuracy Grade | 0.25, 0.5% | Applications | Solar Generators, Wind Power, Heavy Industry, Electroplating, Battery Chargers, Mining |
| High Light | Precision 100 Amp Current Shunt,50 Amp Dc Ammeter 50mV,100 Amp Current Shunt 60mV |
||
Product Description
DC Current Shunts, Russian Type, 5A-3000A, 50mV, 60mV, 75mV, 100mV
DC Current Shunts are low resistance precision resistors used to measure AC or DC electrical currents by the voltage drop those currents create across the resistance.
Power Rating : Watts (W) = Current (I2) x Resistance Value (R)
The heat produced is power measured in Watts (W).
Current shunts dissipate heat from the current flowing through them, when they get hot.
In practice current shunt is often rated to be used continuously at only 2/3 of their "rated current".
Since that heat can change their resistance and even permanently damage the shunt, so it is often given a power rating or a derating factor.
Calculate Current : Current (I) = Voltage (V) / Resistance Value (R)
By inserting a current shunt into a circuit to get the current you want to measure while the voltage dropped across the shunt.
Then knowing the resistance of the current shunt you can calculate the current by using Ohm's law.
