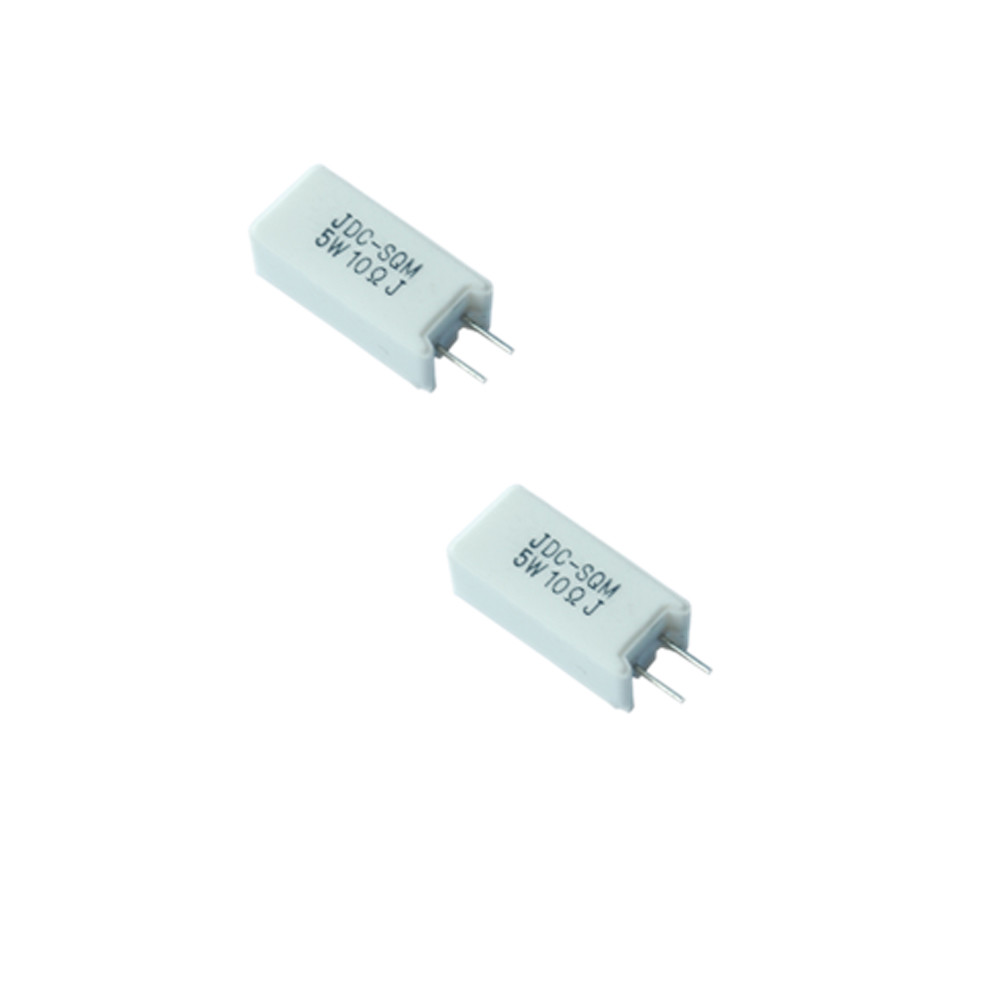

SQM Ceramic Wirewound Resistors Vertical Mount 2W-10W 150PPM
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | SQM |
| Minimum Order Quantity | 5000PCS |
| Price | $0.06-$0.35 |
| Packaging Details | Bulk in blister & Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 1,000Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 2W-10W | Resistance Range | 0.1R-100KR |
|---|---|---|---|
| TCR | 150PPM | ||
| High Light | SQM Ceramic Wirewound Resistors,Ceramic Wirewound Resistors vertical mount,ceramic wire wound resistors 2W |
||
Product Description
Ceramic Wirewound Resistor, Vertical Mount, SQM
SQM Ceramic Wirewound resistors feature a resistance range from 0.05Ω to 1KΩ, while SQP Cement Film Resistor have a resistance range of 100Ω to 50KΩ.
It has ideal specifications for high volume and high-temperature applications. Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom tailored to individual needs.
Standard tolerances for both devices are to ±5%, ±2% and ±1% are customizable, with TCRs ≤300ppm.
Features:
- High performance for power required applications.
- Low cost, space saving, RoHS compliant with 100% lead free.
- High power to size ratio, Special inorganic potting compound.
- Ceramic case provide high thermal conductivity in a fireproof package.
- Direct mounting on printed circuit board, Circuit board lock-in mounting tabs available.
Dimensions:
| Type | Dimension (mm) | Resistance Range (Ω) | |||
| SQM | H±1.5 | W±1 | S±1 | Wirewound | Metal Oxide Film |
| 2W | 20 | 12 | 8 | 0.05-100 | 100-50K |
| 3W | 25 | 12 | 8 | 0.05-100 | 100-50K |
| 5W | 25 | 13 | 9 | 0.05-500 | 100-50K |
| 7W | 39 | 13 | 9 | 0.05-500 | 500-50K |
| 10W | 51 | 13 | 12 | 0.05-1K | 1K-50K |
| 10WS | 35 | 16 | 12 | 0.05-1K | 1K-50K |
Applications:
1. Motor controllers, Automotive applications.
2. Power electronics circuits, Power supplies, Voltage dividers.
