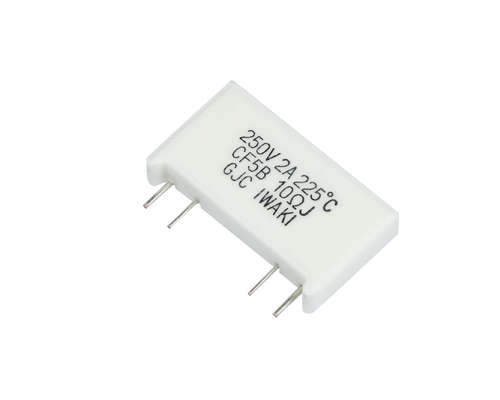

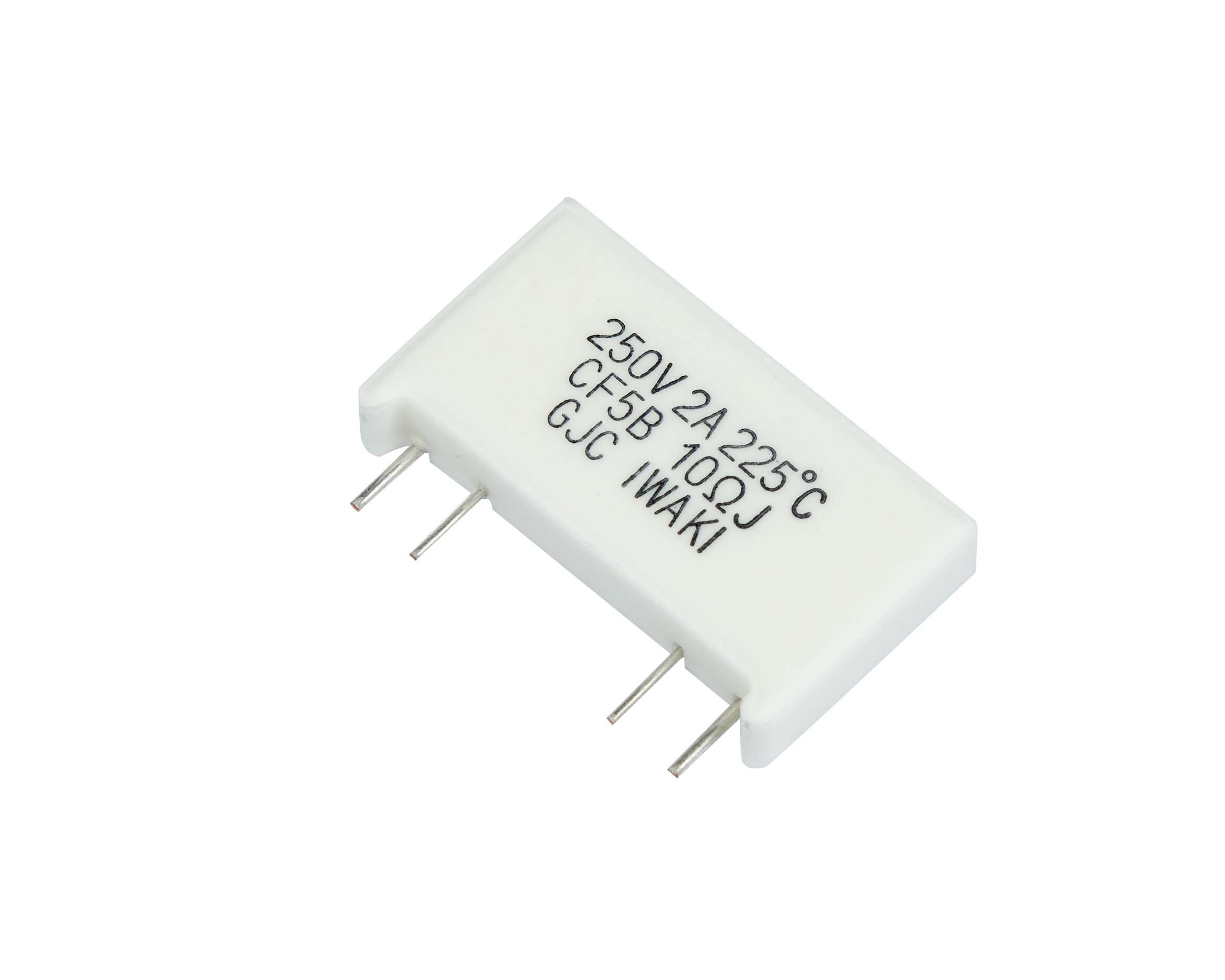

Power Ceramic Wirewound Resistors 5W-10W For Inrush Current Prevention

Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number SQF
Minimum Order Quantity 10000PCS
Price $0.08-$0.15
Packaging Details Bulk in blister & Carton
Delivery Time 7-10 working days
Payment Terms T/T, L/C, Western Union, Paypal
Supply Ability 1,000Kpcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 5W-10W Resistance Range 1Ω To 100Ω
TCR ≤400PPM Low Inductance 10uH, 100KHz
High Light

5W Ceramic Wirewound Resistors

,

10W Ceramic Wirewound Resistors

,

Inrush Current Prevention ceramic power resistor

Leave a Message
Product Description

Ceramic Fusible Resistors Circuit Breaker for the prevention of inrush current

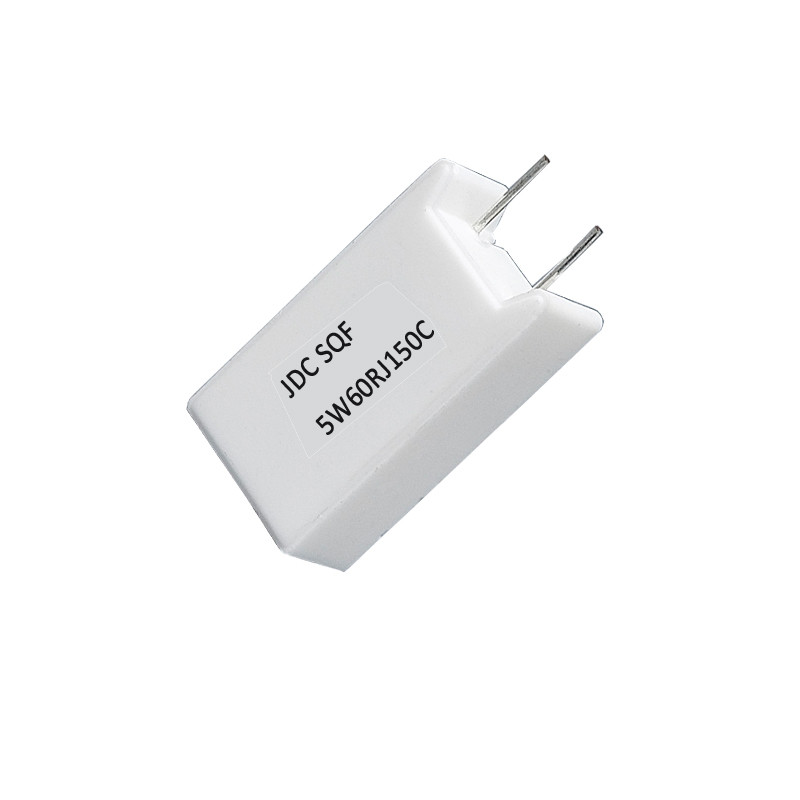

SQF fusible resistor is using metal alloy wire Wounded on ceramic core, then connected with Thermal fuse and this object with terminals inserted into the ceramic case which has good thermal conductivity, and finally sealed and insulated with Inorganic fillers.





Features:

  • Suitable for the prevention of inrush current for switching regulations.
  • Excels in surge withstanding capability
  • Respond quickly to over loading as well as external overheating.
  • The dispersion in fusing characteristics has been minimized and assure high stability performance



Dimensions:



Power Ceramic Wirewound Resistors 5W-10W For Inrush Current Prevention 0



Type Rated power
(w)
Temperature Characteristics Tolerance Resistance range(Ω) Dimension (mm)
Current(A) Fuse Temperature(℃) H±1.5 L±1.0 W±1.0 P±1.0 d±0.05
SQF 5 2 145



±5%(J)
±10%(K)

1~100 25 12 8.0 5 0.75
7 2 145 1~100 25 13 10 5 0.75
10 10 150 1~100 39 13 10 5 0.75







Electrical Performance:



Power Ceramic Wirewound Resistors 5W-10W For Inrush Current Prevention 1
