BPR/MPR Metal Plate Resistor , 10uH 100KHz Low Inductance Resistor
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | BPR/MPR |
| Minimum Order Quantity | 10000PCS |
| Price | $0.06-$0.12 |
| Packaging Details | Bulk in blister & Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 1,000Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 2W-10W | Resistance Range | 10mΩ To 68Ω |
|---|---|---|---|
| TCR | ≤200PPM | Low Inductance | 10uH, 100KHz |
| High Light | MPR Metal Plate Resistor,BPR Metal Plate Resistor,100KHz Low Inductance Resistor |
||
Product Description

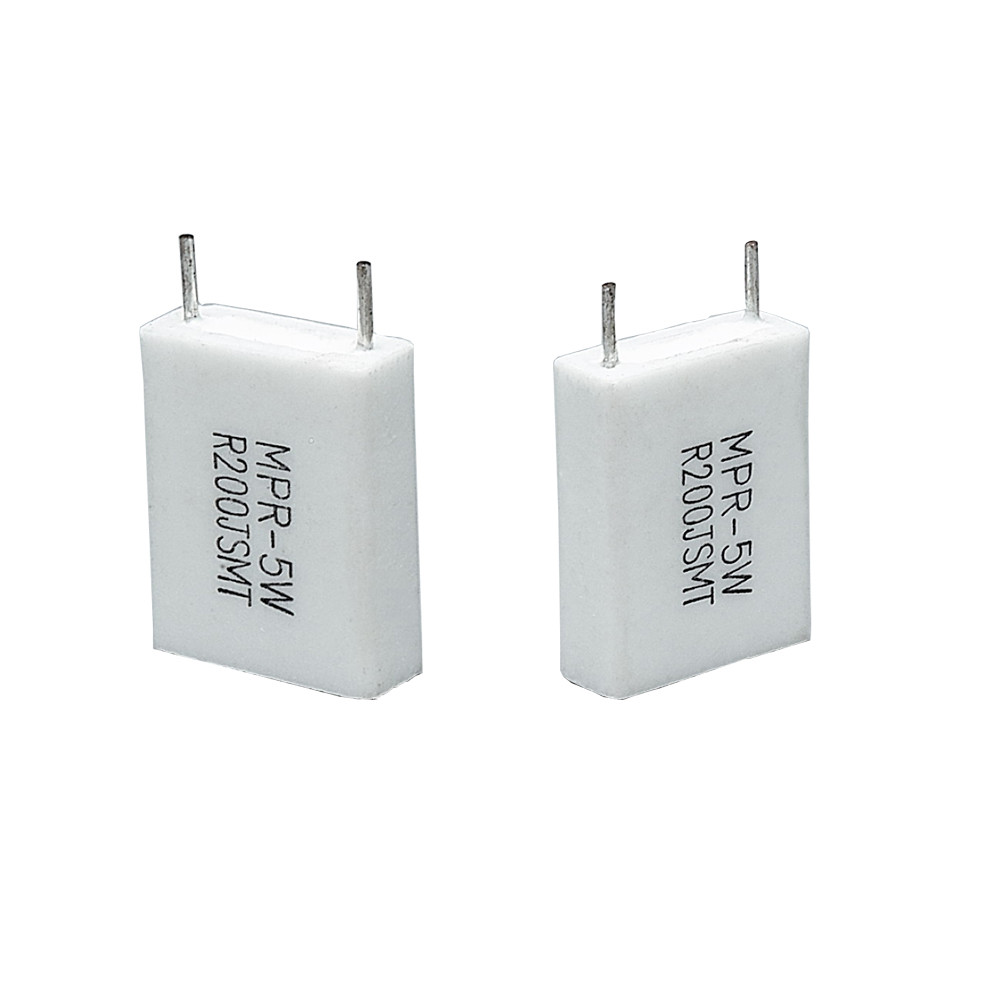

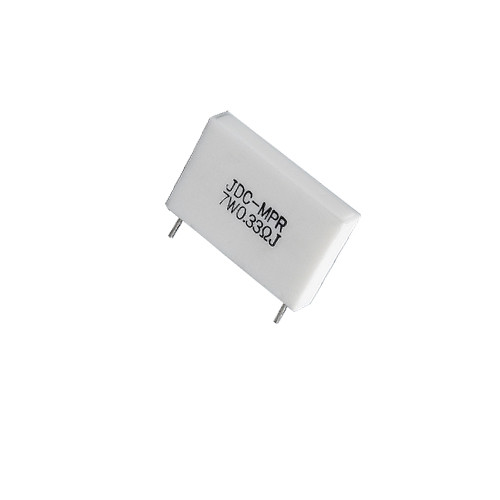

Metal Plate Resistors BPR/MPR, Low Inductance, ceramic case
BPR Metal Plate Resistors are rectangular power current detecting resistors that are flame retardant in a ceramic case. The BPR/MPR series metal plate resistors from JDC are space-saving and offer automatic insertion for a 5mm pitch between terminals. Other features include low inductance, power rating from 2W to 10W, and operating temperature range from -40°C to +200°C.
Features:
- Power type current detecting resistors
- Flame retardant resistors in ceramic case
- Automatic insertion for a 5mm pitch between terminals (26 type, 58 type)
- Low inductance
- Space saving
- Alpha/numeric marking
- Products with lead-free terminations meet EU RoHS requirements
Dimensions:
Electrical Performance:
