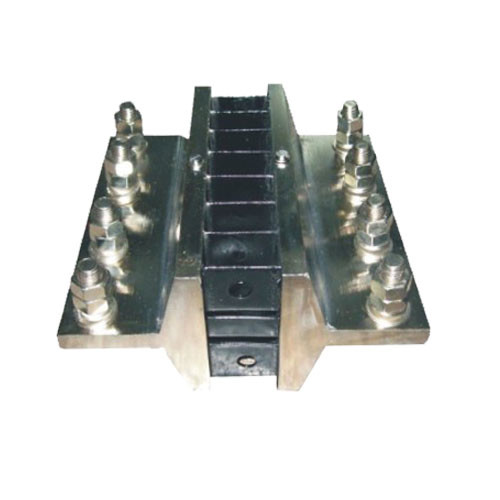

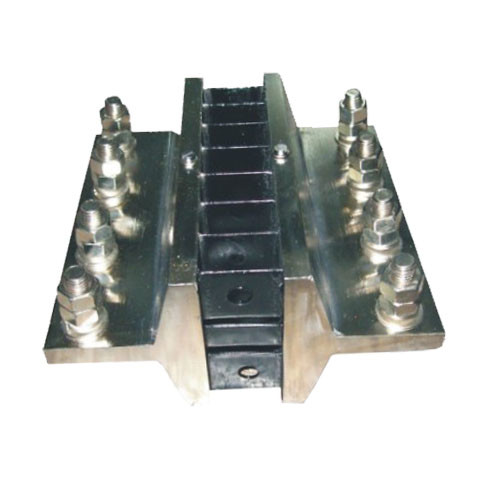

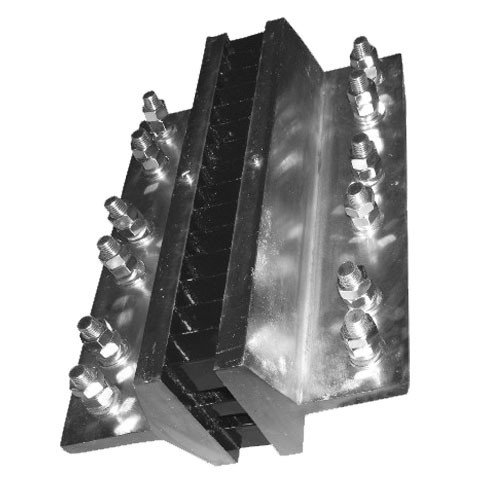

5000A 75mV DC Current Shunt , Bus Bar DC Meter Shunt 0.5% Accuracy

  • 5000A 75mV DC Current Shunt , Bus Bar DC Meter Shunt 0.5% Accuracy
  • 5000A 75mV DC Current Shunt , Bus Bar DC Meter Shunt 0.5% Accuracy
  • 5000A 75mV DC Current Shunt , Bus Bar DC Meter Shunt 0.5% Accuracy
Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number FL-2
Minimum Order Quantity 200 PCS
Price US$15.0-US$55.00
Packaging Details Bulk in Box
Delivery Time 3 Weeks
Payment Terms T/T, Western Union
Supply Ability 100,000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 5000A-10000A Output Voltage 50mV, 60mV, 75mV, 100mV, Customizable
Tolerance ±0.25%,±0.5% Element Manganin Resistive
High Light

75mV DC Current Shunt

,

5000A DC Current Shunt

,

DC Meter Shunt 0.5% Accuracy
Leave a Message
Product Description

5000A 75mV DC Meter Shunts, Bus Bar, Current Sense, 0.5% Accuracy



Features:

1. Base Mounted Shunt
2. Current Rating up to 15,000 Amps
3. 50mV, 60mV, 75mV, 100mV or Custom Output
4. Standard Tolerance ±0.5%
5. Manganin Resistive Element
6. Common Applications: Solar Generators, Wind Power, Heavy Industry, Electroplating, Battery Chargers, Mining



Dimensions(5000A-10000A 75mV):



5000A 75mV DC Current Shunt , Bus Bar DC Meter Shunt 0.5% Accuracy 0

5000A 75mV DC Current Shunt , Bus Bar DC Meter Shunt 0.5% Accuracy 1
