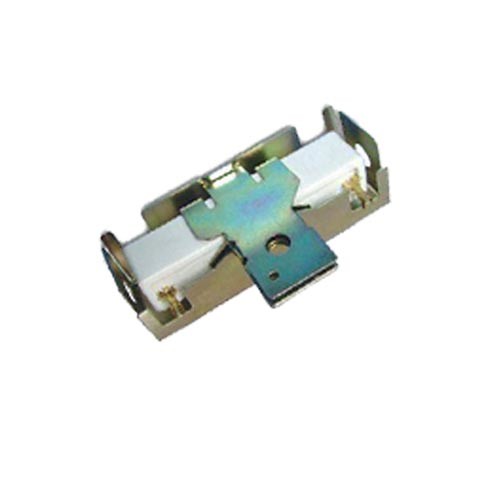

Low TCR available Ceramic Wirewound Resistors Encased With Bracket
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | SQHG |
| Minimum Order Quantity | 1000PCS |
| Price | US$0.15/PCS-US$0.65/PCS |
| Packaging Details | Bulk in blister & Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 500Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 10W-50W | Resistance Range | 1R-150K |
|---|---|---|---|
| TCR | 100PPM | ||
| High Light | Low TCR Ceramic Wirewound Resistors,Ceramic Wirewound Resistors With Bracket,ceramic encased resistor |
||
Product Description
Ceramic Encased Wirewound Resistors with Brasket
A resistance element of Nicrom alloy is wounded on ceramic body. Resistor is fitted with cement in ceramic boats and cured. The fire proof ceramic construction provides excellent thermal conductivity and resistance to solvent and moisture & for mechanical and climatic protection, Marking is given with respect to designated value, tolerance & type no. All Resistors are subjected to tesing before dispatch.
Features:
- Wide Range of resistance
- Low TCR available
- High Tolerances available
- RoHS Compliant
- Custom Built Design and values available
Dimensions:
| Type | Dimension (mm) | Resistance Range (Ω) | Max Working Voltage |
||||||||
| SQHG | W±1 | H±1 | L±1.5 | P±1 | H1±1 | D±0.5 | P1±0.2 | P2±0.2 | SQH | RS+SQH | |
| 10W | 10 | 9 | 48 | 32 | 21 | 5 | 2.5 | 2 | 0.1~500 | 500~50K | 500V |
| 15W | 12.5 | 11.5 | 48 | 32 | 21 | 5 | 2.5 | 2 | 1~1K | 1K~150K | 600V |
| 20W | 14.5 | 13.5 | 60 | 43 | 24 | 6 | 3.0 | 2.5 | 1~2K | 2K~150K | 700V |
| 30W | 19 | 19 | 75 | 56 | 29 | 6 | 3.0 | 2.5 | 1~2K | 700V | |
| 40W | 19 | 19 | 90 | 67 | 29 | 6 | 3.0 | 2.5 | 2~3K | 700V | |
| 50W | 19 | 19 | 90 | 67 | 29 | 6 | 3.0 | 2.5 | 2~3K | 700V | |
