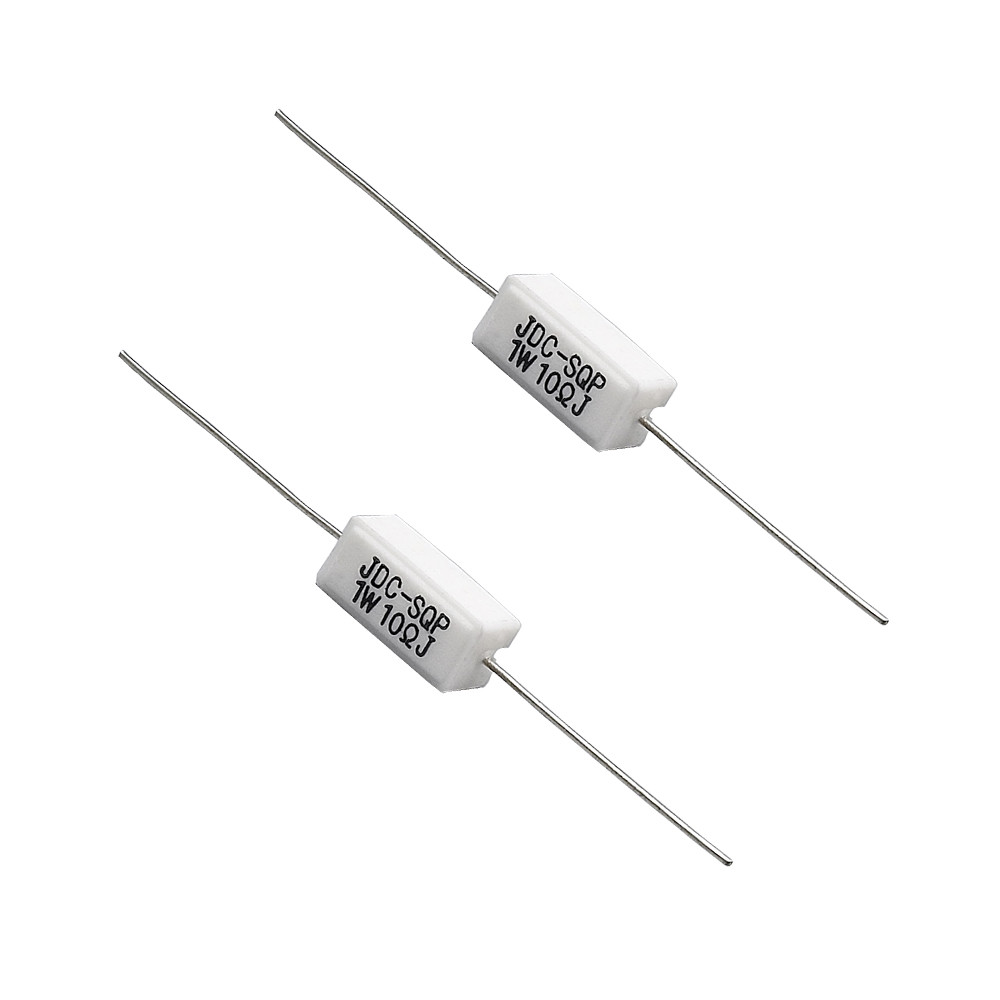

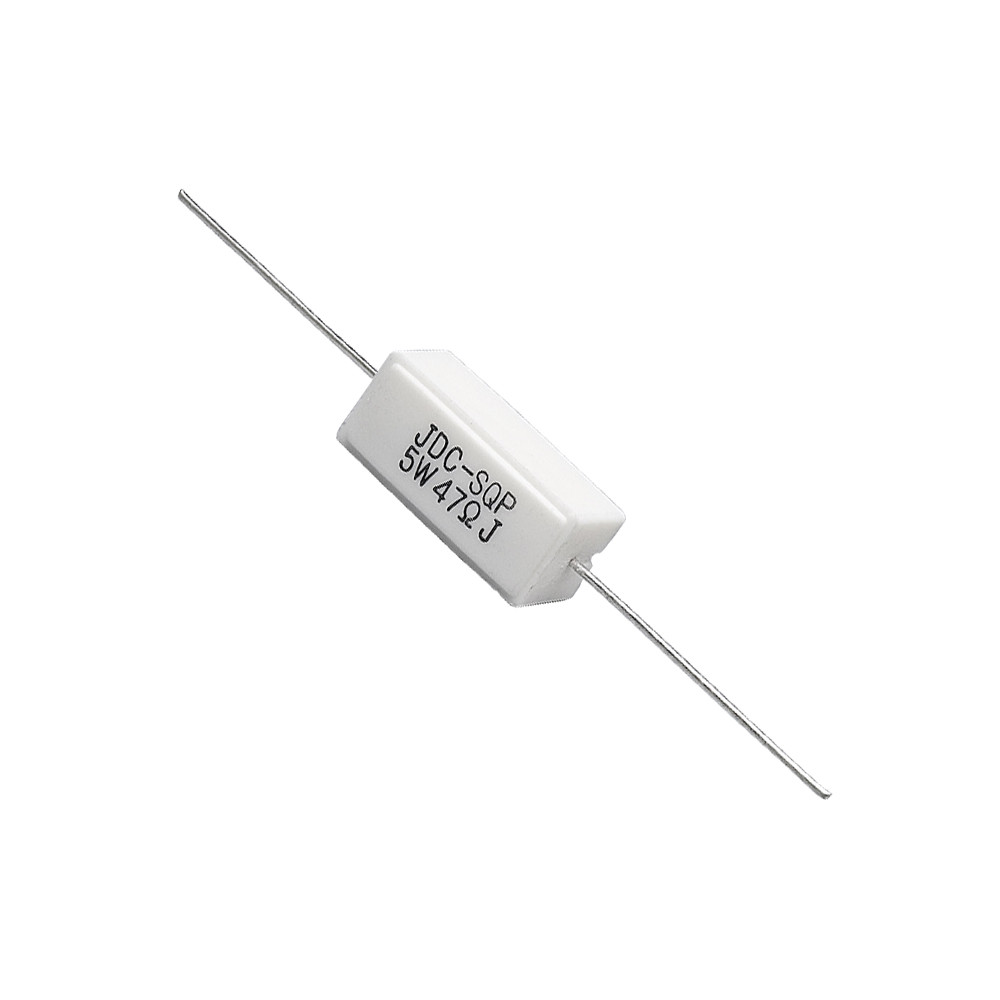

Horizontal Ceramic Wirewound Resistors , 2W 150V Power Supply Resistors
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | SQP |
| Minimum Order Quantity | 5K |
| Price | US$0.2-US$1.0 |
| Packaging Details | Bulk in Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 1,000Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Working Voltage | 2W: 150V, 3W: 250v, 5W: 350V | Non-inductive | Available(Resistance≤50ohms) |
|---|---|---|---|
| High Light | Horizontal Ceramic Wirewound Resistors,2W Ceramic Wirewound Resistors,150V Power Supply Resistors |
||
Product Description
Horizontal Ceramic Power Resistor for Power electronics circuits, Power supplies
Features:
- High performance for power required applications.
- Low cost, space saving, RoHS compliant with 100% lead free.
- High power to size ratio, Special inorganic potting compound.
- Ceramic case provide high thermal conductivity in a fireproof package.
- Direct mounting on printed circuit board, Circuit board lock-in mounting tabs available.
Dimensions:
| Type | Dimension (mm) | Resistance Range (Ω) | ||||
| SQP | W±1 | H±1 | L±1.5 | d±0.05 | Wirewound | Mo |
| 2W | 7 | 7 | 18 | 0.5~0.6 | 0.01~50 | 50-20K |
| 3W | 8 | 8 | 22 | 0.7~0.8 | 0.01~50 | 50~33K |
| 5W | 10 | 9 | 22 | 0.7~0.8 | 0.01~100 | 100~50K |
| 7W | 10 | 9 | 35 | 0.7~0.8 | 0.01~1K | 1K~50K |
| 10W | 10 | 9 | 48 | 0.7~0.8 | 0.01~1K | 1K~150K |
| 15W | 12.5 | 11.5 | 48 | 0.7~0.8 | 0.01~1K | 1K~150K |
| 20W-25W | 14 | 13.5 | 60 | 0.7~0.8 | 0.01~1K | 1K~150K |
Descriptions:
With the extended resistance range and high-temperature rating, the resistors can be specified for operation in harsh environments. SQP Cement Wirewound resistors feature a resistance range from 0.1Ω to 3KΩ, while SQP Cement Film Resistor have a resistance range of 80Ω to 150KΩ.
SQP Cement resistor's feature ideal specifications for high volume and high-temperature applications. Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom tailored to individual needs.
Standard tolerances for both devices are to ±5%, with TCRs ≤300ppm. JDC is equipped to design and produce custom components to meet many design and reliability demands.
Electrical Performance:
| TEST ITEMS | CONDITION | SPEC. |
| Resistance Temp Coeff. | -30°C~ 200°C | ±300ppm / °C |
| Short Time Over Load | 2.5 times of rated wattage for 5 sec. | ±2 % |
| Rated Load | Rated wattage for 30 min. | ±1 % |
| Voltage Withstanding | 800 v AC 1 min. | no charge |
| Temp. Cycle | -30°C~ 85°Cfor 5 cycles | ±1 % |
| Load Life | 70°Con-off cycle 1000hrs. | ±5 % |
| Moisture-proof Load Life | 40°C95% RH on-off cycle 500 hrs. | ±5 % |
| Incombustibility | 16 times of rated wattage for 5 min. | not flammed |
