high volume Cement Power Resistor 2W-10W for motor controllers

  • high volume Cement Power Resistor 2W-10W for motor controllers
  • high volume Cement Power Resistor 2W-10W for motor controllers
  • high volume Cement Power Resistor 2W-10W for motor controllers
Place of Origin CHINA
Brand Name JDC
Certification ROHS
Model Number SQM
Minimum Order Quantity 5000PCS
Price $0.06-$0.35
Packaging Details Bulk in blister & Carton
Delivery Time 7-10 working days
Payment Terms T/T, L/C, Western Union, Paypal
Supply Ability 1,000Kpcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Power 2W-20W Resistance Range 0.05R-100KR
TCR ≤300PPM Installation Vertical - SQM
High Light

High Volume Cement Power Resistor

,

Cement Power Resistor 2W

,

cement power resistors 10W
Leave a Message
Product Description

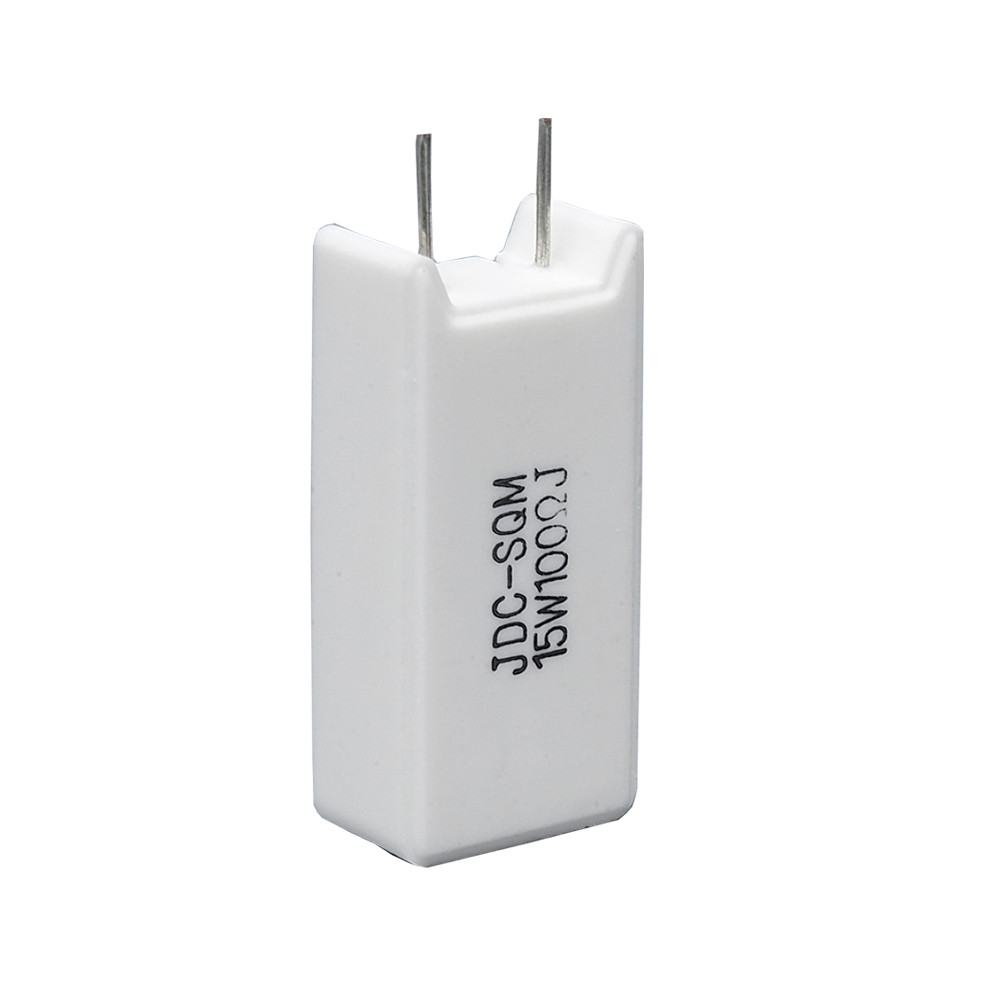

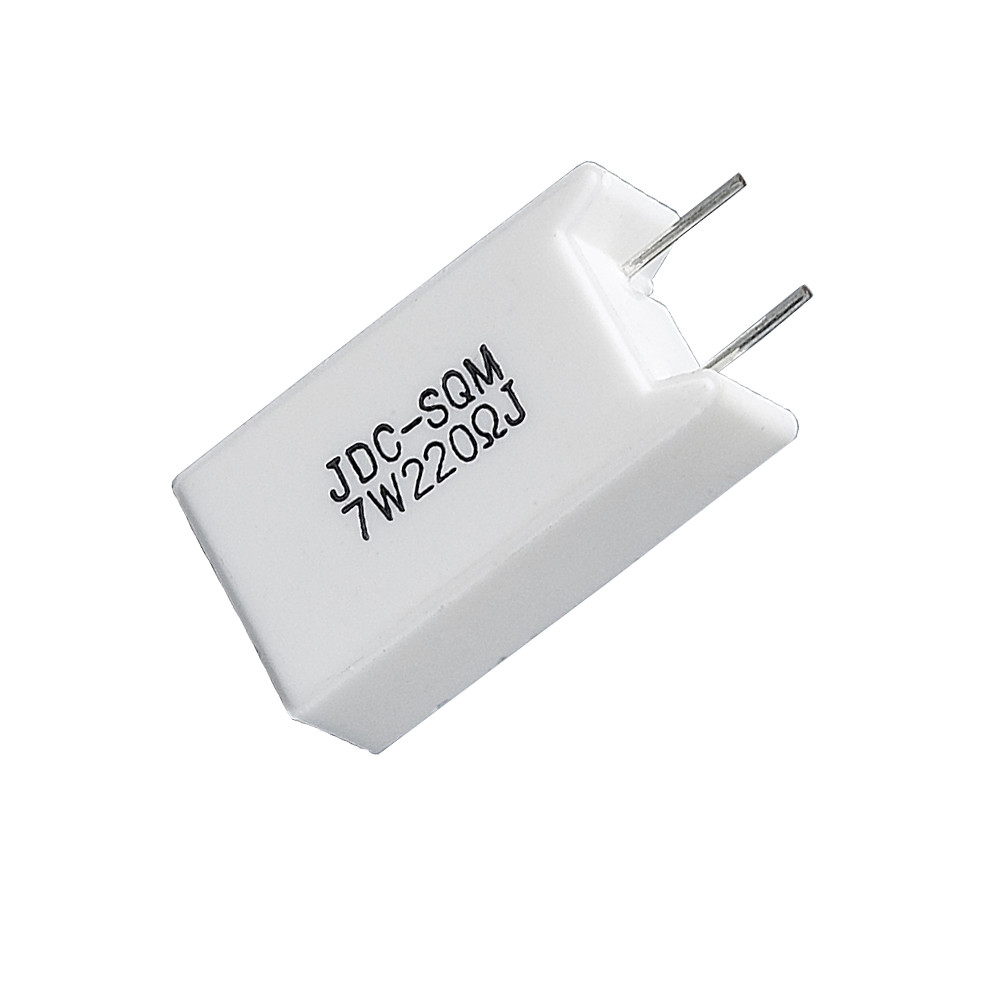

SQM Cement Wirewound Resistor 2W-10W



SQM Cement Wirewound Resistor feature ideal specifications for high volume and high-temperature applications. Frequently used in power supplies, motor controllers, and automotive applications, these products can be custom tailored to individual needs.

With the extended resistance range and high-temperature rating, the resistors can be specified for operation in harsh environments. SQM wirewound feature a resistance range from 0.05Ω to 1KΩ, while SQM film resistors have a resistance range of 100Ω to 150KΩ.

Standard tolerances for both devices are to ±5%, with TCRs of ±300ppm/°C and above.



Dimensions:



Type Dimension (mm) Resistance Range (Ω)
SQM H±1.5 W±1 S±1 Wirewound Metal Oxide Film
2W 20 12 8 0.05-100 100-50K
3W 25 12 8 0.05-100 100-50K
5W 25 13 9 0.05-500 100-50K
7W 39 13 9 0.05-500 500-50K
10W 51 13 12 0.05-1K 1K-50K
10WS 35 16 12 0.05-1K 1K-50K



Features:



1. Rated power: 2W-10W

2. Resistance range: 0R05-150KR

4. Tolerance: ±2%, ±5%

5. TCR: ≤300ppm/℃

6. RoHS compliant with 100% lead free
