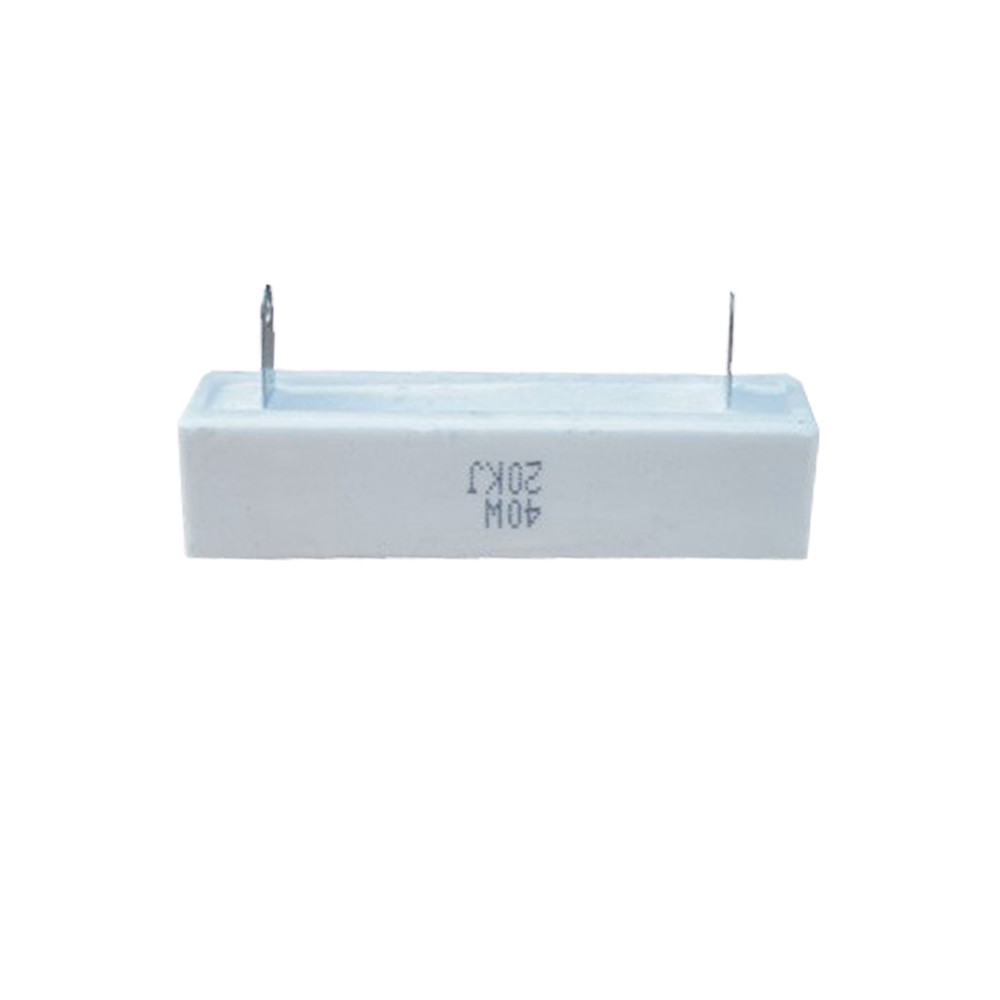

10W-50W Ceramic Cement Power Resistor 100PPM RoHS Compliant
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | SQH |
| Minimum Order Quantity | 1000PCS |
| Price | US$0.15/PCS-US$0.65/PCS |
| Packaging Details | Bulk in blister & Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 500Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 10W-50W | Resistance Range | 1R-150K |
|---|---|---|---|
| TCR | 100PPM | ||
| High Light | 50W ceramic cement power resistor,ceramic cement power resistor 100PPM,ceramic power resistors RoHS Compliant |
||
Product Description
SQH Ceramic Encased Wirewound Resistors
Features:
- Wide Range of resistance
- Low TCR available
- High Tolerances available
- RoHS Compliant
- Custom Built Design and values available
Descriptions:
With rated power from 10W to 50W, SQH ceramic encased wirewound resistor are widely used in electronic product and motor blower control. Resistance range from 0.1R-150K, and max working voltage is up to 700V.
Dimensions:
| Type | Dimension (mm) | Resistance Range (Ω) | Max Working Voltage |
||||||||
| SQH | W±1 | H±1 | L±1.5 | P±1 | H1±1 | D±0.5 | P1±0.2 | P2±0.2 | SQH | RS+SQH | |
| 10W | 10 | 9 | 48 | 32 | 21 | 5 | 2.5 | 2 | 0.1~500 | 500~50K | 500V |
| 15W | 12.5 | 11.5 | 48 | 32 | 21 | 5 | 2.5 | 2 | 1~1K | 1K~150K | 600V |
| 20W | 14.5 | 13.5 | 60 | 43 | 24 | 6 | 3.0 | 2.5 | 1~2K | 2K~150K | 700V |
| 30W | 19 | 19 | 75 | 56 | 29 | 6 | 3.0 | 2.5 | 1~2K | 700V | |
| 40W | 19 | 19 | 90 | 67 | 29 | 6 | 3.0 | 2.5 | 2~3K | 700V | |
| 50W | 19 | 19 | 90 | 67 | 29 | 6 | 3.0 | 2.5 | 2~3K | 700V | |
