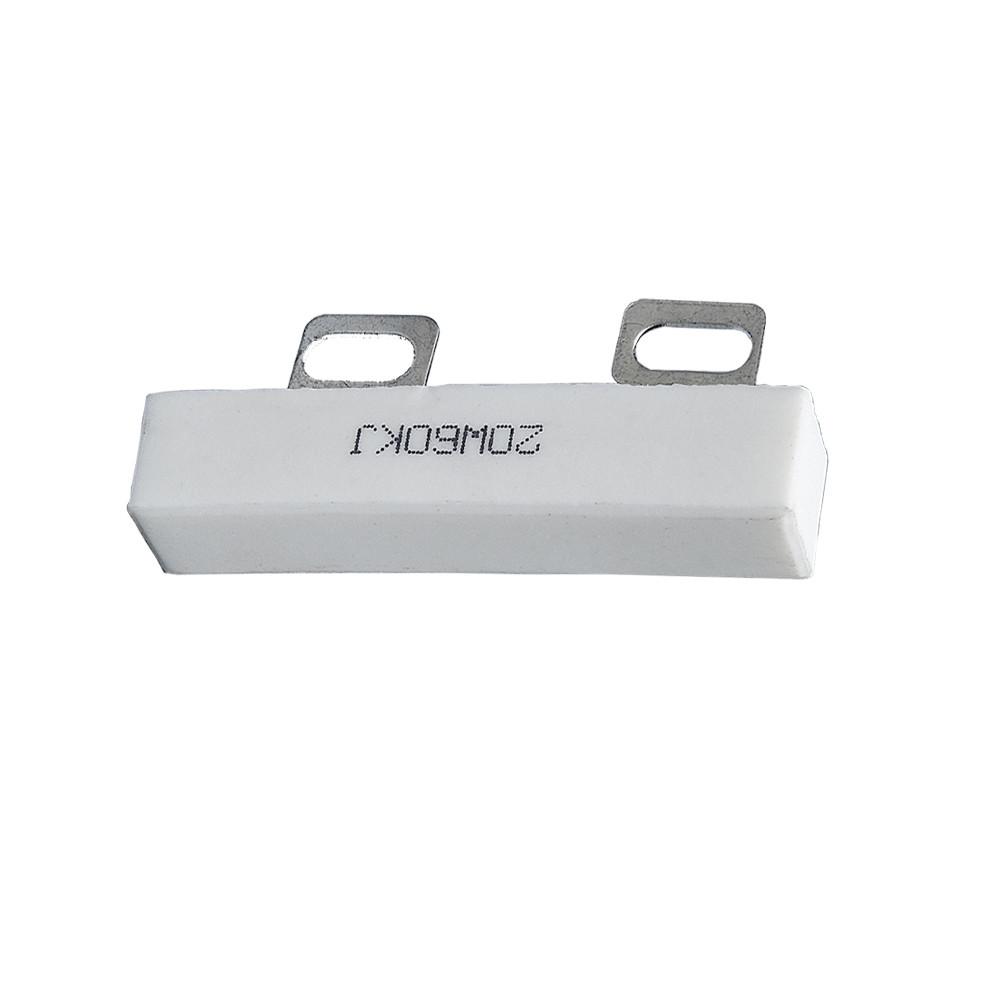

Cement Wirewound Capacitor Inductor Resistor 100PPM 10W-50W
| Place of Origin | CHINA |
|---|---|
| Brand Name | JDC |
| Certification | ROHS |
| Model Number | SQH |
| Minimum Order Quantity | 1000PCS |
| Price | US$0.15/PCS-US$0.65/PCS |
| Packaging Details | Bulk in blister & Carton |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C, Western Union, Paypal |
| Supply Ability | 500Kpcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 10W-50W | Resistance Range | 1R-150K |
|---|---|---|---|
| TCR | 100PPM | ||
| High Light | wirewound capacitor inductor resistor,cement capacitor inductor resistor,ceramic wirewound resistor 100PPM |
||
Product Description
Grading resistor for capacitor, cement wirewound
In electronic circuits, when two electrolytic capacitors are used in series, there is often a large resistance with the same resistance value in parallel next to each capacitor, the large resistance is usually above 2W power, and the parallel resistance at both ends of the capacitor is called grading resistor. This resistance is commonly used in 380V circuit, because the voltage resistance of electrolytic capacitor is generally low, in order to meet the needs of high voltage use, the electrolytic capacitor will be used in series to improve the voltage resistance to solve the problem.
Features:
- Wide Range of resistance
- Low TCR available
- High Tolerances available
- RoHS Compliant
- Custom Built Design and values availabl
Dimensions:
